IBM CORPORATION
OPTIONS 20/40 GB, DLT INTERNAL TAPE
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI-2 Fast/Wide |
|
Format |
DLT |
|
Sustained Transfer Rate |
1.5 MBPS, 3 MBPS |
|
Size |
5.25 in. third height |
|
View |
Top |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1/Pins 1 & 2 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 3 & 4 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 5 & 6 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 7 & 8 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 9 & 10 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 11 & 12 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 13 & 14 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 15 & 16 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 17 & 18 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 19 & 20 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 21 & 22 |
Unidentified |
| » |
Termination enabled |
JP1/Pins 23 & 24 |
Closed |
|
Termination disabled |
JP1/Pins 23 & 24 |
Open | |
| » |
Factory configured - do not alter |
JP1/Pins 25 & 26 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 1 & 2 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 3 & 4 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 5 & 6 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 6 & 7 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 8 & 9 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 9 & 10 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 11 & 12 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 13 & 14 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 15 & 16 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 17 & 18 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 19 & 20 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 21 & 22 |
Unidentified |
| » |
Factory configured - do not alter |
JP2/Pins 23 & 24 |
Unidentified |
| » |
Parity check disabled |
JP2/Pins 25 & 26 |
Open |
|
Parity check enabled |
JP2/Pins 25 & 26 |
Closed | |
| » |
Factory configured - do not alter |
JP4 |
Unidentified |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP3/Pins 1 & 2 |
JP3/Pins 3 & 4 |
JP3/Pins 5 & 6 | |
|
0 |
Closed |
Open |
Open | |
| » |
1 |
Closed |
Open |
Open |
|
2 |
Closed |
Open |
Open | |
|
3 |
Closed |
Open |
Open | |
|
4 |
Closed |
Open |
Closed | |
|
5 |
Closed |
Open |
Closed | |
|
6 |
Closed |
Open |
Closed | |
|
7 |
Closed |
Open |
Closed | |
|
DRIVE SELECT ID (CONT’D) | |||
|
Drive ID |
JP3/Pins 7 & 8 |
JP3/Pins 9 & 10 | |
|
0 |
Open |
Open | |
| » |
1 |
Open |
Closed |
|
2 |
Closed |
Open | |
|
3 |
Closed |
Closed | |
|
4 |
Open |
Open | |
|
5 |
Open |
Closed | |
|
6 |
Closed |
Open | |
|
7 |
Closed |
Closed | |
|
MANUFACTURERS RECOMMENDED MEDIA | ||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
IBM 59H3040 |
20GB |
40GB |
|
DLTtapeIII |
2.6GB, 6GB, 8GB, 10GB |
20GB |
|
DLTtapeIIIxt |
15GB |
30GB |
|
DLTtapeIV |
20GB |
40GB |
|

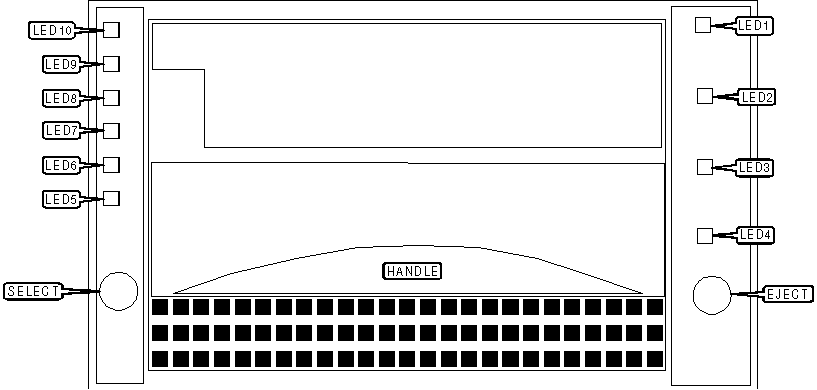

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Orange |
On |
Cartridge is write protected |
|
LED1 |
Orange |
Off |
Cartridge is not write protected |
|
LED2 |
Yellow |
On |
Tape is loaded and ready for use |
|
LED2 |
Yellow |
Off |
No tape is loaded |
|
LED2 |
Yellow |
Blinking |
Tape is in motion |
|
LED3 |
Yellow |
On |
Drive heads need cleaning |
|
LED3 |
Yellow |
Off |
Drive is in good working condition |
|
LED4 |
Green |
On |
You can safely lift the insert/release handle |
|
LED4 |
Green |
Off |
You can not safely lift the insert/release handle |
|
LED4 |
Green |
Blinking |
Push the insert/release handle down |
|
LED5 |
Yellow |
On |
You pressed the SELECT button to change tape density |
|
LED5 |
Yellow |
Off |
No change was made for the tape density |
|
LED6 |
Yellow |
On |
Data compression is enabled |
|
LED6 |
Yellow |
Off |
Data compression is disabled |
|
LED7 |
Yellow |
On |
Tape is to be recorded at 20GB capacity |
|
LED7 |
Yellow |
Off |
Tape is not set at 20GB capacity |
|
LED7 |
Yellow |
Blinking |
User requested 20GB capacity |
|
LED8 |
Yellow |
On |
Tape is to be recorded at 10GB/15GB capacity |
|
LED8 |
Yellow |
Off |
Tape is not set for 10GB/15GB capacity |
|
LED8 |
Yellow |
Blinking |
User requested 10GB/15GB capacity |
|
LED9 |
Yellow |
On |
Tape is to be recorded at 6GB capacity |
|
LED9 |
Yellow |
Off |
Tape is not set at 6GB capacity |
|
LED9 |
Yellow |
Blinking |
User requested 6GB capacity |
|
LED10 |
Yellow |
On |
Tape is to be recorded at 2.6GB capacity |
|
LED10 |
Yellow |
Off |
Tape is not set at 2.6GB capacity |
|
LED10 |
Yellow |
Blinking |
User requested 2.6GB capacity |
|
Note: | |||
