TANDBERG DATA

TDC 3660, TDC 3820, TDC 4120, TDC 4220,

TDC 4222 (INTERNAL VERSIONS)

Device Type

Tape Drive

Interface

SCSI-2

Format

QIC-150 (TDC 3660), QIC-525 (TDC 3820), QIC-1000 (TDC 4120), QIC-2GB (TDC 4220, TDC 4222)

Sustained Transfer Rate

90KBPS (TDC 3660); 200KBPS (TDC 3820); 300KBPS (TDC 4120, TDC 4220, TDC 4222)

Size

5.25 in. half height

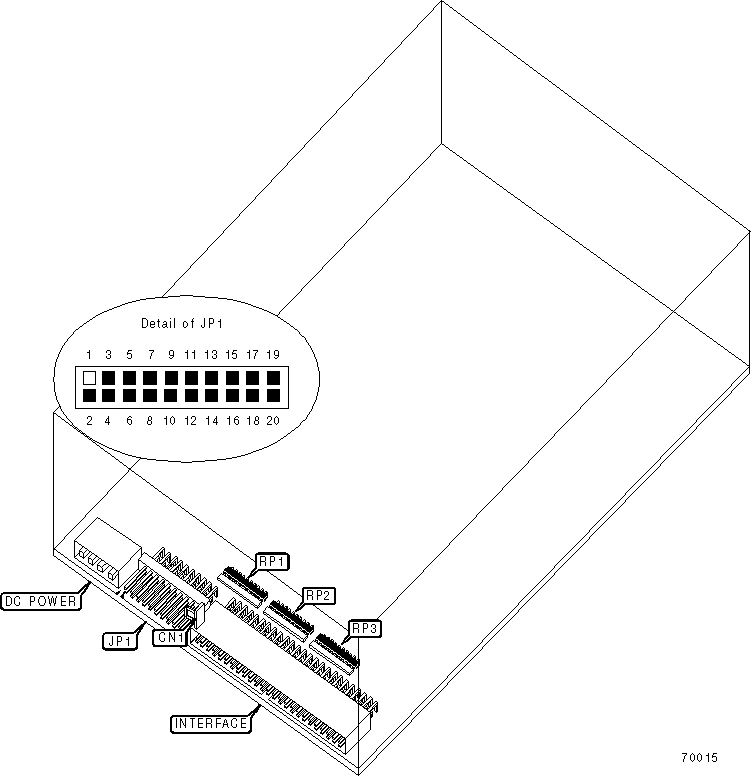

View

Top

CONNECTIONS

Function

Label

Ground connector

CN1

Note: CN1 not present on all models.

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Factory configured - do not alter. (Reserved for testing)

JP1/Pins 1 & 2

Unidentified

Factory configured - do not alter.

JP1/Pins 3 & 4

Unidentified

Factory configured - do not alter.

JP1/Pins 5 & 6

Unidentified

Factory configured - do not alter.

JP1/Pins 7 & 8

Unidentified

Factory configured - do not alter.

JP1/Pins 9 & 10

Unidentified

Termination Power enabled

JP1/Pins 11 & 12

Closed



Termination Power disabled

JP1/Pins 11 & 12

Open

DRIVE SELECT ID

Drive ID

JP1/Pins 13 & 14

JP1/Pins 15 & 16

JP1/Pins 17 & 18



0

Open

Open

Open



1

Open

Open

Closed

2

Open

Closed

Open



3

Open

Closed

Closed



4

Closed

Open

Open



5

Closed

Open

Closed



6

Closed

Closed

Open



7

Closed

Closed

Closed

TERMINATION POWER SELECTION

Setting

JP1/Pins 19 & 20

TERMPWR supplied by drive

Closed



TERMPWR supplied by SCSI interface to drive

Open

MANUFACTURERS RECOMMENED MEDIA

Drive

Tape

Capacity Without Compression

Capacity With Compression

TDC 3660

DC-6150

155MB

N/A

TDC 3660

DC-6250; QD-6250

250MB

N/A

TDC 3820

DC-6150

155MB

N/A

TDC 3820

DC-6250

250MB

N/A

TDC 3820

DC-6320

320MB

N/A

TDC 3820

DC-6525; QD-6525

525MB

N/A

TDC 4120

DC-6150

155MB

N/A

TDC 4120

DC-6250

250MB

N/A

TDC 4120

DC-6320

320MB

N/A

TDC 4120

DC-6525

525MB

N/A

TDC 4120

DC-9100/Magnus 1.0

1.0GB

N/A

TDC 4120

DC-9120/Magnus 1.2; QD-9120

1.2GB

N/A

TDC 4220

DC-6150

155MB

N/A

TDC 4220

DC-6250

250MB

N/A

TDC 4220

DC-6320

320MB

N/A

TDC 4220

DC-6525

525MB

N/A

TDC 4220

DC-9100/Magnus 1.0

1.0GB

N/A

TDC 4220

DC-9120/Magnus 1.2

1.2GB

N/A

TDC 4220

DC-9200/Magnus 2.0

2.0GB

N/A

TDC 4220

DC-9250; QD-9250

2.5GB

5.0GB

TDC 4222

DC-6150

155MB

N/A

TDC 4222

DC-6250

250MB

N/A

TDC 4222

DC-6320

320MB

N/A

TDC 4222

DC-6525

525MB

N/A

TDC 4222

DC-9100/Magnus 1.0

1.0GB

N/A

TDC 4222

DC-9120/Magnus 1.2

1.2GB

N/A

TDC 4222

DC-9200/Magnus 2.0

2.0GB

N/A

TDC 4222

DC-9250; QD-9250

2.5GB

5.0GB

Note: The following tapes are not supported by Tandberg Data drives:

1) DC9135, DC9210, DC9500, for models TDC 3660/3820/4120/4220/4222.

2) Any CD2000 type and Sony QW3080XL for models TDC 3520/3720.

TERMINATING RESISTOR CONFIGURATION

Function

RP1

RP2

RP3

Termination enabled

Terminator installed

Terminator installed

Terminator installed

Termination disabled

Terminator not installed

Terminator not installed

Terminator not installed
