TANDBERG DATA
MLR1
|
Device Type |
Tape Drive |
|
Interface |
SCSI-2 |
|
Format |
QIC-120/150, QIC-154, QIC-525, QIC-1000, QIC-2GB, QIC-13GB |
|
Sustained Transfer Rate |
1,500KBPS |
|
Size |
5.25 in. half height |
|

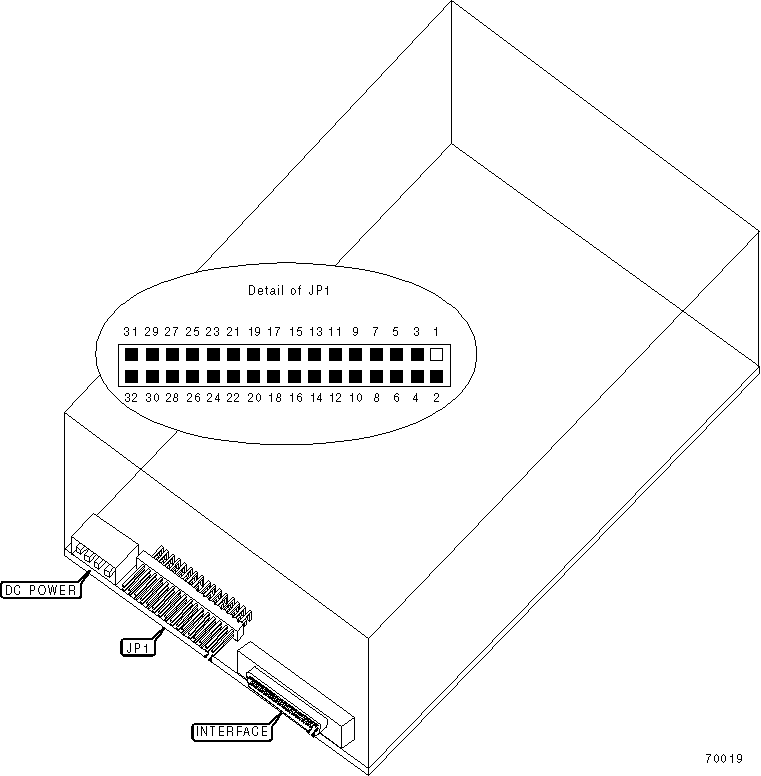

View |
Top |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Termination enabled |
JP1/Pins 3 & 4 |
Closed |
|
Termination disabled |
JP1/Pins 3 & 4 |
Open | |
| » |
Factory configured – do not alter. (Parity enable/disable) |
JP1/Pins 13 & 14 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 15 & 16 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 17 & 18 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 19 & 20 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 21 & 22 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 23 & 24 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 25 & 26 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 27 & 28 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 29 & 30 |
Unidentified |
| » |
Factory configured – do not alter. |
JP1/Pins 31 & 32 |
Unidentified |
|
DRIVE SELECT ID | |||||
|
Drive ID |
JP1/Pins 11 & 12 |
JP1/Pins 9 & 10 |
JP1/Pins 7 & 8 |
JP1/Pins 5 & 6 | |
|
0 |
Open |
Open |
Open |
Open | |
|
1 |
Closed |
Open |
Open |
Open | |
| » |
2 |
Open |
Closed |
Open |
Open |
|
3 |
Closed |
Closed |
Open |
Open | |
|
4 |
Open |
Open |
Closed |
Open | |
|
5 |
Closed |
Open |
Closed |
Open | |
|
6 |
Open |
Closed |
Closed |
Open | |
|
7 |
Closed |
Closed |
Closed |
Open | |
|
8 |
Open |
Open |
Open |
Closed | |
|
9 |
Closed |
Open |
Open |
Closed | |
|
10 |
Open |
Closed |
Open |
Closed | |
|
11 |
Closed |
Closed |
Open |
Closed | |
|
12 |
Open |
Open |
Closed |
Closed | |
|
13 |
Closed |
Open |
Closed |
Closed | |
|
14 |
Open |
Closed |
Closed |
Closed | |
|
15 |
Closed |
Closed |
Closed |
Closed | |
|
TERMINATION POWER SELECTION | ||
|
Setting |
JP1/Pins 1 & 2 | |
| » |
TERMPWR supplied by drive |
Closed |
|
TERMPWR supplied by SCSI interface to drive |
Open | |
|
MANUFACTURERS RECOMMENED MEDIA | ||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
DC 13 GB |
13GB |
26GB |
|

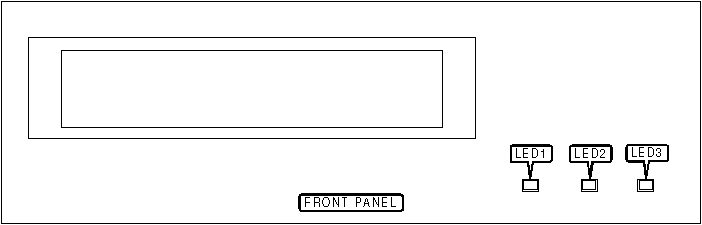

DIAGNOSTIC LED(S) | |||
|
Condition |
LED1 (Green) |
LED2 (Green) |
LED3 (Amber) |
|
Self Test passed |
On |
Off |
Off |
|
Self Test failed |
On |
Off |
On/Blinking |
|
Note: Other functions of LEDs are unidentified. | |||
