Device Type	External Tape Drive
Interface	SCSI
Format	DDS DDS-DC (3200SE)
Sustained Transfer Rate	Unidentified (5130SE) 500KBPS (2000SE) 732KBPS (3200SE)
Size	Unidentified

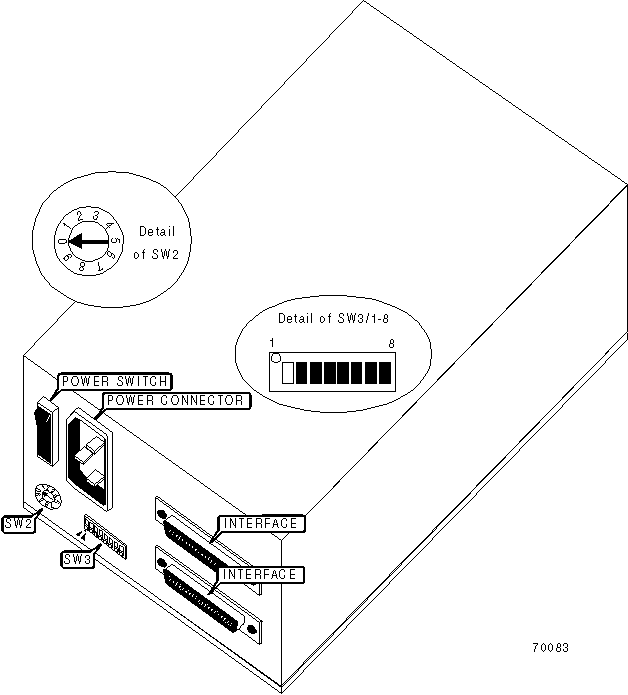

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Buffered Mode software selectable	SW3/1	Off
	Buffered Mode not software selectable	SW3/1	On
»	Compression enabled	SW3/2	On
	Compression disabled	SW3/2	Off
»	SCSI 1 mode enabled	SW3/3	Off
	SCSI 2 mode enable	SW3/3	On
»	Allow insertion and removal of Tapes by command or eject button	SW3/4	Off
	Prevent insertion and removal of Tapes by command or eject button	SW3/4	On
»	Parity check enabled	SW3/5	On
	Parity check disabled	SW3/5	Off
»	Factory configured - do not alter	SW3/6	Off
»	Factory configured - do not alter	SW3/7	Off
»	Factory configured - do not alter	SW3/8	Off

DRIVE SELECT ID
Drive ID		SW2
	0	Arrow at 0
»	1	Arrow at 1
	2	Arrow at 2
	3	Arrow at 3
	4	Arrow at 4
	5	Arrow at 5
	6	Arrow at 6
	7	Arrow at 7
Note: Settings 8 & 9 are not used.

TERMINATION POWER SELECTION
Setting		JP1
»	TERMPWR supplied by drive	Closed
	TERMPWR supplied by SCSI interface to drive	Open
Note: Jumper JP1 is located inside the drive. Exact location is unidentified.

MANUFACTURERS RECOMMENDED MEDIA
Drive	Tape	Capacity
WangDAT 5131SE	WangDAT 60 meter	1.3 GB
WangDAT 5131SE	WangDAT 90 meter	2.0 GB
WangDAT 5131SE	Maxell HS-4/60	1.3 GB
WangDAT 5131SE	Maxell HS-4/90	2.0 GB
WangDAT 5131SE	TDK DC4-60	1.3 GB
WangDAT 5131SE	TDK DC4-90	2.0 GB
WangDAT 5131SE	Fuji DG-90	2.0 GB
WangDAT 5131SE	JVC DF-90	2.0 GB
WangDAT 5131SE	KAO KD200	1.3 GB
WangDAT 2000SE	WangDAT 60 meter	3.7 GB
WangDAT 2000SE	WangDAT 90 meter	5.7 GB
WangDAT 2000SE	Maxell HS-4/60	3.7 GB
WangDAT 2000SE	Maxell HS-4/90	5.7 GB
WangDAT 2000SE	TDK DC4-60	3.7 GB
WangDAT 2000SE	TDK DC4-90	5.7 GB
WangDAT 2000SE	Fuji DG-90	5.7 GB
WangDAT 2000SE	JVC DF-90	5.7 GB
WangDAT 2000SE	KAO KD200	3.7 GB
WangDAT 3200SE	WangDAT 60 meter	2.6 GB
WangDAT 3200SE	WangDAT 90 meter	4.0 GB
WangDAT 3200SE	Maxell HS-4/60	2.6 GB
WangDAT 3200SE	Maxell HS-4/90	4.0 GB
WangDAT 3200SE	TDK DC4-60	2.6 GB
WangDAT 3200SE	TDK DC4-90	4.0 GB
WangDAT 3200SE	Fuji DG-90	4.0 GB
WangDAT 3200SE	JVC DF-90	4.0 GB
WangDAT 3200SE	KAO KD200	2.6 GB

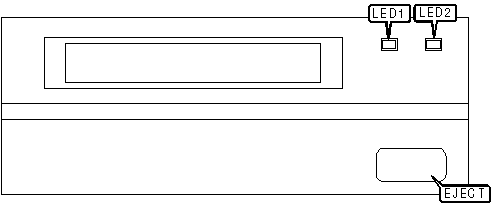

DIAGNOSTIC LED(S) (MODEL 5130SE ONLY)
LED	Color	Status	Condition
LED1	Green	On	Drive active
LED1	Green	Off	Drive not active
LED2	Amber	On	Tape loaded
LED2	Amber	Blinking	Tape loading/unloading
LED2	Amber	Off	Tape not loaded

DIAGNOSTIC LED(S) (MODELS 3200SE, AND 2000SE ONLY)
LED	Color	Status	Condition
LED1	Green	On	Drive active
LED1	Red	Blinking	Drive fault
LED1	N/A	Off	Drive not active
LED2	Amber	On	DDS tape loaded
LED2	Green	On	Compress tape loaded
LED2	Amber	Blinking	Tape loading/unloading
LED2	N/A	Off	Tape not loaded
Note: On models 3200SE, and 2000SE LED1 is a multicolor Green/Red indicator, and LED2 is a multicolor Amber/Green indicator.
