SEAGATE TECHNOLOGY, INC.

PEREGRINE 4324NP, 4326NP, 4320NT

Device Type

Internal Tape Drive

Interface

SCSI-2

Format

DDS (4320NT)

DDS-2 (4326NP)

DDS-DC (4324NP)

Sustained Transfer Rate

400KBPS (800KBPS compressed - 4326NP, 4324NP only)

Size

3.5 in. half height (4320NT, 4326NP, 4324NP)

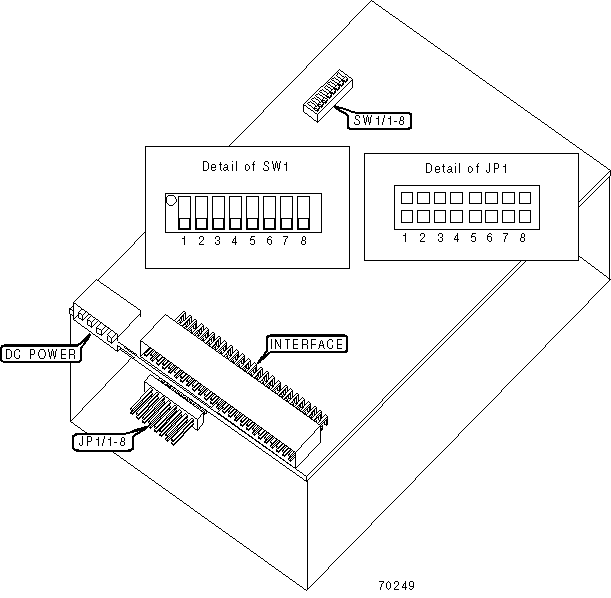

View

Bottom

USER CONFIGURABLE SETTINGS

Setting

Label

Position



Power-on self-test enabled

JP1/4

Closed



Power-on self-test disabled

JP1/4

Open



DC disabled

JP1/5

Closed



DC enabled

JP1/5

Open



Active terminator enabled

JP1/6

Closed



Active terminator disabled

JP1/6

Open



Factory configured - do not alter

JP1/7

Reserved



Term power on

JP1/8

Closed



Term power off

JP1/8

Open

»

All mode enabled

SW1/4

On



MRS mode enabled

SW1/4

Off

»

Parity check disabled

SW1/5

Off



Parity check enabled

SW1/5

On

»

DDS-DC enabled

SW1/6

Off



DDS enabled

SW1/6

On

»

Factory configured - do not alter

SW1/7

Reserved

»

Self test enabled

SW1/8

On



Self test disabled

SW1/8

Off

DRIVE SELECT ID

Drive ID

SW1/1

SW1/2

SW1/3

JP1/1

JP1/2

JP1/3

»

0

Off

Off

Off

Open

Open

Open



1

On

Off

Off

Closed

Open

Open



2

Off

On

Off

Open

Closed

Open



3

On

On

Off

Closed

Closed

Open



4

Off

Off

On

Open

Open

Closed



5

On

Off

On

Closed

Open

Closed



6

Off

On

On

Open

Closed

Closed



7

On

On

On

Closed

Closed

Closed

MANUFACTURERS RECOMMENDED MEDIA

Drive

Tape

Capacity Without Compression

Capacity With Compression

4320NT, 4320RT

90 meter DDS DAT cartridge

2.0GB

NA

4324NP, 4324RP

90 meter DDS-DC DAT cartridge

2.0GB

4.0GB

4326NP, 4326RP

90 meter DDS-2 DAT cartridge

2.0GB

4.0GB

4326NP, 4326RP

120 meter DDS-2 DAT cartridge

4.0GB

8.0GB
