ACER, INC.

10X/8X-SPEED CD-ROM

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

8x, 10x

Formats Supported Read

CD-ROM (mode 1 & 2), CD-XA (mode 2, form 1 & 2), Audio-CD, Video-CD, CD-I/FMV, Photo-CD, CD Plus, Karaoke-CD

Formats Supported Write

N/A

View

Top

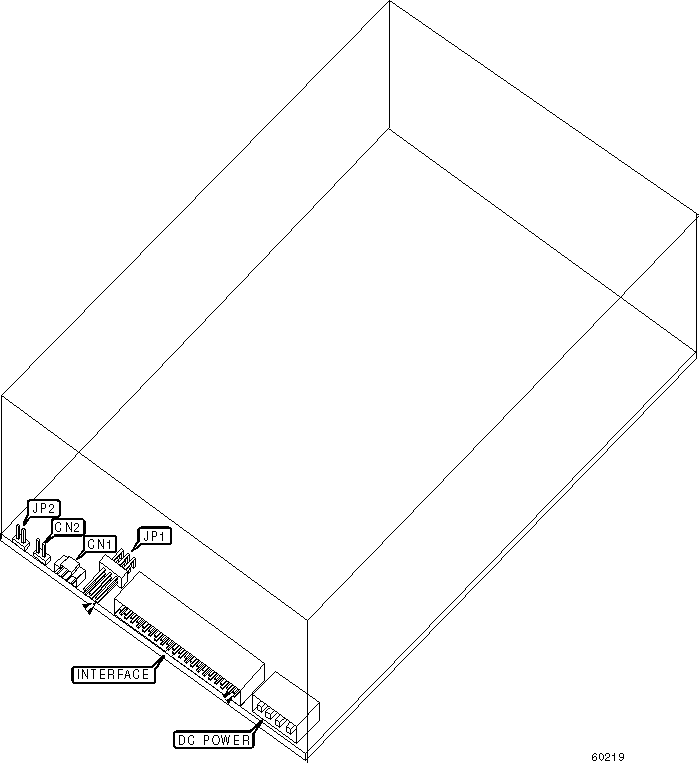

CONNECTIONS

Function

Label

Function

Label

Analog audio out

CN1

Digital audio out

CN2

ATAPI MASTER/SLAVE SELECTION

Setting

JP1/jumper 1

JP1/jumper 2

JP1/jumper 3



Single drive only

Closed

Open

Open



Master in two drive system

Closed

Open

Open

»

Slave in a two drive system

Open

Closed

Open



Master/Slave determined by Cable Select (CSEL)

Open

Open

Closed

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP2

Open
