BEHAVIOR TECH COMPUTER CORPORATION

CDD-120

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

Unidentified

Formats Supported Read

CD-XA, CD-I, CD-DA, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book, CD-Plus

View

Top

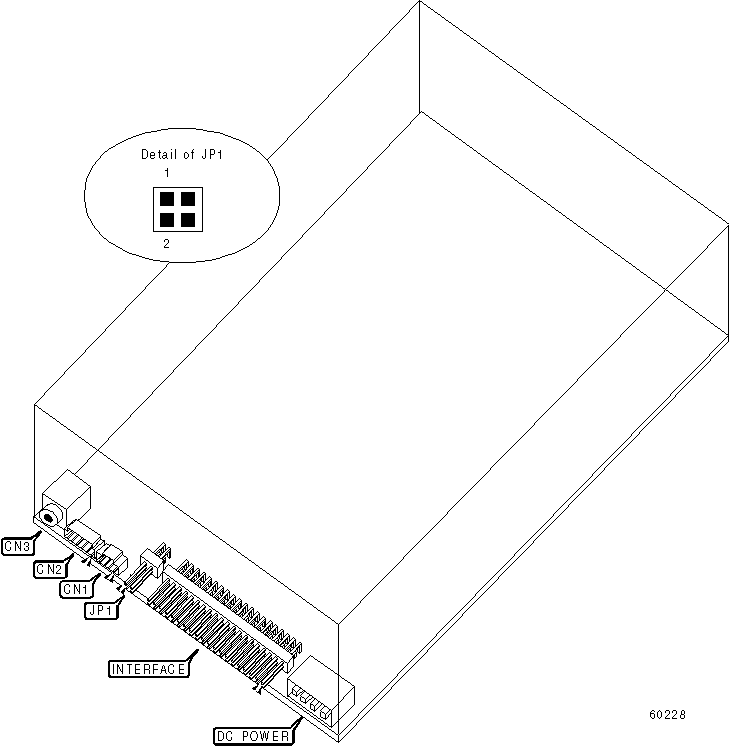

CONNECTIONS

Function

Label

Function

Label

CD Audio out

CN1

Optional digital output

CN3

Optional feature connector

CN2



Note: Connectors CN2 and CN3 are not present on all models.

ATAPI MASTER/SLAVE

Setting

JP1

»

Slave

Pins 1 & 2 open



Master

Pins 1 & 2 closed

Note: Pins 3 & 4 of JP1 are reserved for factory testing and should not be altered.
