HEWLETT PACKARD COMPANY
HP C4392A, HP C4398A, SURESTORE CD-WRITER PLUS 8100I,
SURESTORE CD-WRITER PLUS 8110I
|
Device Type |
Internal CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate (Read/Write) |
1x, 2x, 4x, 8x, 10x, 24x (read) / 1x, 2x, 4x (write) |
|
Formats Supported Read |
CD-R, CD-RW, Red/Yellow/Orange/Green Book |
|
Formats Supported Write |
CD-R, CD-RW, Red/Yellow/Orange/Green Book, ISO 9660, UDF |
|

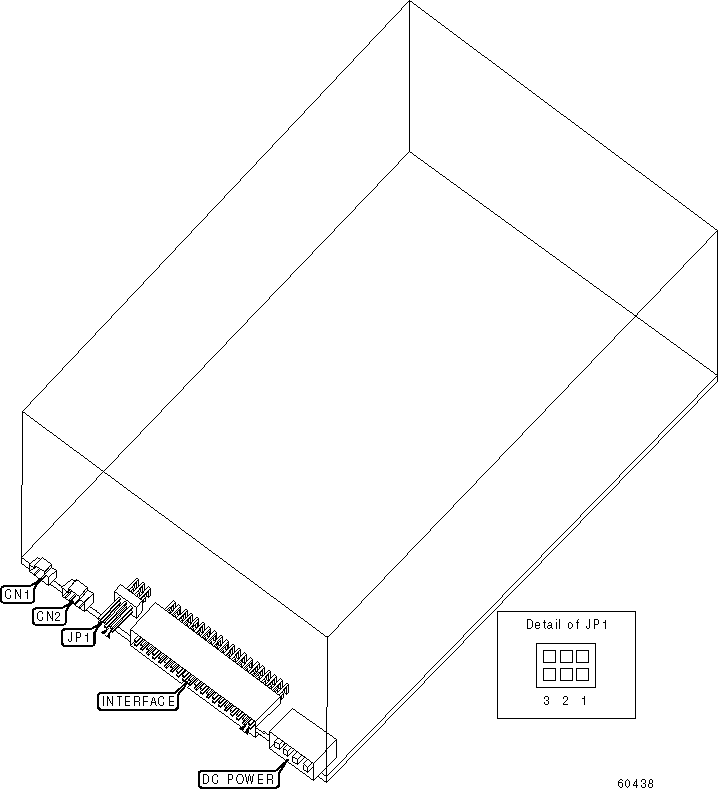

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Digital audio line out |
CN1 |
Analog audio line out |
CN2 |
|
ATAPI MASTER/SLAVE | |||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
Master in two drive system |
Closed |
Open |
Open |
|
Slave in two drive system |
Open |
Closed |
Open |
|
Master/slave determined by cable select |
Open |
Open |
Closed |
