CD585

IBM CORPORATION

CD585

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

2x

Formats Supported

Unidentified

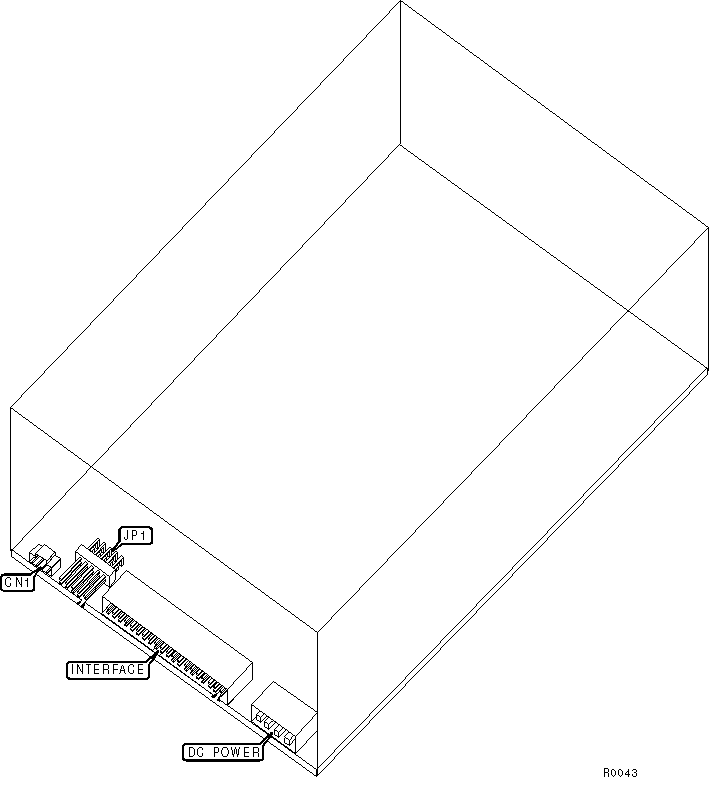

View

Top

CONNECTIONS

Function

Label

Audio line out

CN1

DRIVE TRAY MECHANISM CONFIGURATION

Setting

JP1/1

JP1/2

»
Power on locked (PR)

Closed

Open

Power on unlocked (AL)

Open

Closed

ATAPI MASTER/SLAVE

Setting

JP1/3

JP1/4

JP1/5

Single drive only

Closed

Open

Open

Master in two drive system

Closed

Open

Open

»
Slave in two drive system

Open

Closed

Open

Master/Slave determined by Cable Select

Open

Open

Closed

Note: ‘Single drive’ refers tot the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.

Device Type	CD-ROM
Interface	ATAPI
Spin Rate	2x
Formats Supported	Unidentified
View	Top

DRIVE TRAY MECHANISM CONFIGURATION
Setting		JP1/1	JP1/2
»	Power on locked (PR)	Closed	Open
	Power on unlocked (AL)	Open	Closed

ATAPI MASTER/SLAVE
Setting		JP1/3	JP1/4	JP1/5
	Single drive only	Closed	Open	Open
	Master in two drive system	Closed	Open	Open
»	Slave in two drive system	Open	Closed	Open
	Master/Slave determined by Cable Select	Open	Open	Closed
Note: ‘Single drive’ refers tot the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.
