CDR-1300

NEC TECHNOLOGIES CORPORATION

CDR-1300

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

6x

Formats Supported

CD-Bridge (Orange Book), CD-DA, CD-ROM (Mode1 & Mode2), CD-XA (Form 1 & 2), Photo-CD (Single & Multi-session)

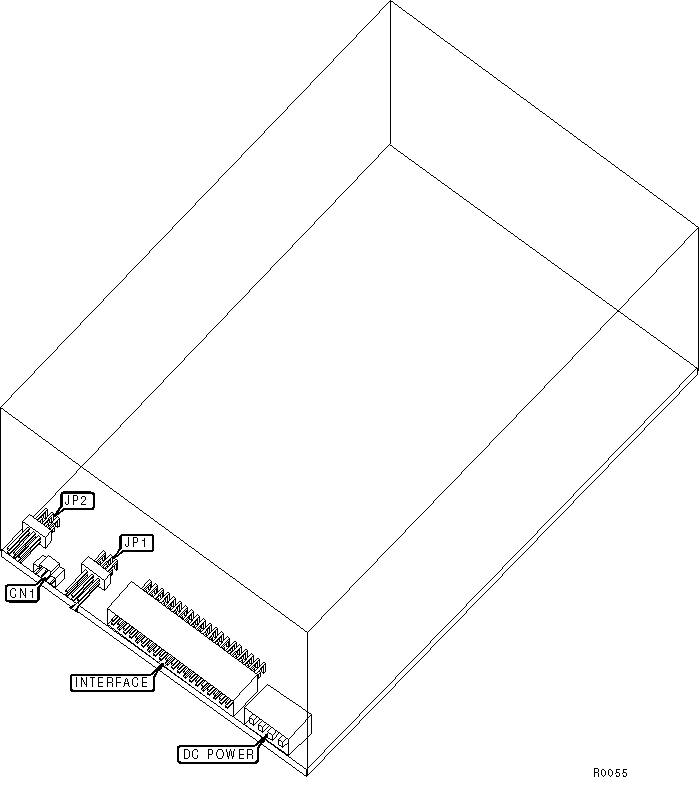

View

Top

CONNECTIONS

Function

Label

Audio line out

CN1

ATAPI MASTER/SLAVE

Setting

JP1/1

JP1/2

JP1/3

Single drive only

Closed

Open

Open

Master in two drive system

Closed

Open

Open

Slave in two drive system

Open

Open

Open

»
Master/Slave determined by Cable Select

Open

Open

Closed

Note: ‘Single drive’ refers to the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.

MISCELLANEOUS TECHNICAL NOTE

Note: The exact function & purpose of JP2 is unidentified.

Device Type	CD-ROM
Interface	ATAPI
Spin Rate	6x
Formats Supported	CD-Bridge (Orange Book), CD-DA, CD-ROM (Mode1 & Mode2), CD-XA (Form 1 & 2), Photo-CD (Single & Multi-session)
View	Top

ATAPI MASTER/SLAVE
Setting		JP1/1	JP1/2	JP1/3
	Single drive only	Closed	Open	Open
	Master in two drive system	Closed	Open	Open
	Slave in two drive system	Open	Open	Open
»	Master/Slave determined by Cable Select	Open	Open	Closed
Note: ‘Single drive’ refers to the sole drive connected to an IDE interface (there may be up to two on a given system). Master & Slave refer to two drives connected to an interface.
