NEC TECHNOLOGIES, INC.

CDR-222S

Device Type

Internal CD-ROM

Interface

SCSI

Spin Rate (Read)

4x

Formats Supported Read

CD-XA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus

View

Top

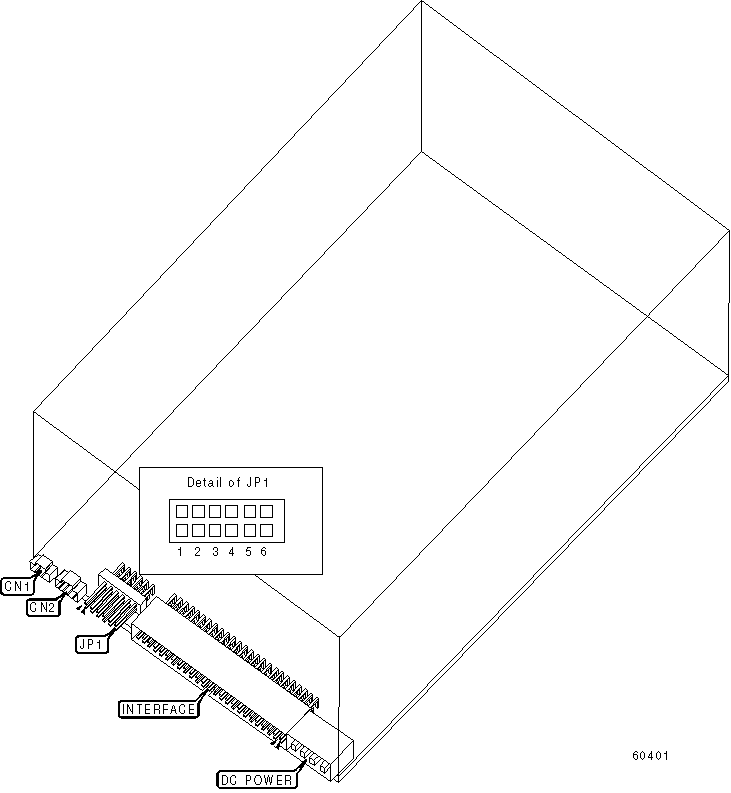

CONNECTIONS

Function

Label

Function

Label

Digital audio line out

CN1

Line out

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Factory configured - do not alter

JP1/4

Unidentified

Termination enabled

JP1/5

Closed

Termination disabled

JP1/5

Open

Factory configured - do not alter

JP1/6

Unidentified

DRIVE SELECT ID

Drive ID

JP1/1

JP1/2

JP1/3

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

7

Closed

Closed

Closed
