PIONEER ELECTRONICS, INC.
DW-S114X
|
Device Type |
CD-ROM Writer subsystem |
|
Interface |
SCSI-2 |
|
Size |
210 x 115 x 399 (mm) |
|
Spin Rate |
2x, 4x |
|
Formats Supported |
CD-ROM, CD-DA, Yellow Book, Orange Book part 2, Red book, CD-XA (mode 1 & 2, form 1 & 2) |
|

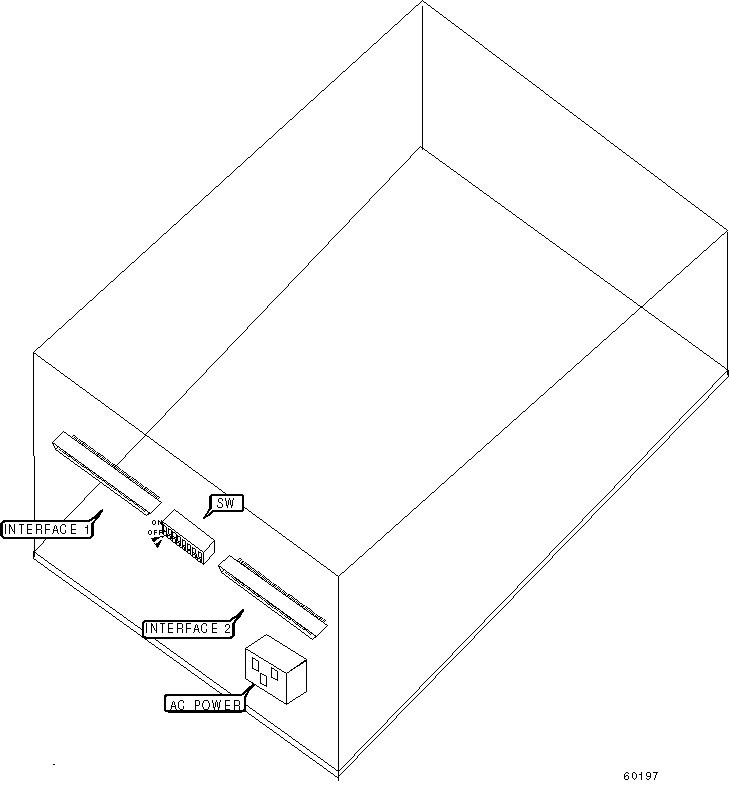

View |
Top |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW/4 |
Off |
| » |
2048 data block size enabled |
SW/5 |
Off |
|
512 data block size enabled |
SW/5 |
On | |
| » |
Parity check enabled |
SW/6 |
Off |
|
Parity check disabled |
SW/6 |
On | |
| » |
SCSI termination enabled |
SW/7 |
Off |
|
SCSI termination disabled |
SW/7 |
On | |
| » |
Factory configured - do not alter |
SW/8 |
Off |
|
DRIVE SELECT ID | ||||
|
Drive ID |
SW/1 |
SW/2 |
SW/3 | |
|
0 |
Off |
Off |
Off | |
|
1 |
On |
Off |
Off | |
| » |
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off | |
|
4 |
Off |
Off |
On | |
|
5 |
On |
Off |
On | |
|
6 |
Off |
On |
On | |
|
7 |
On |
On |
On | |
