Device Type	CD-WORM (Write Once Read Many)
Interface	SCSI-2
Size	5.25 in. half height
Spin Rate	4x
Formats Supported	Unidentified

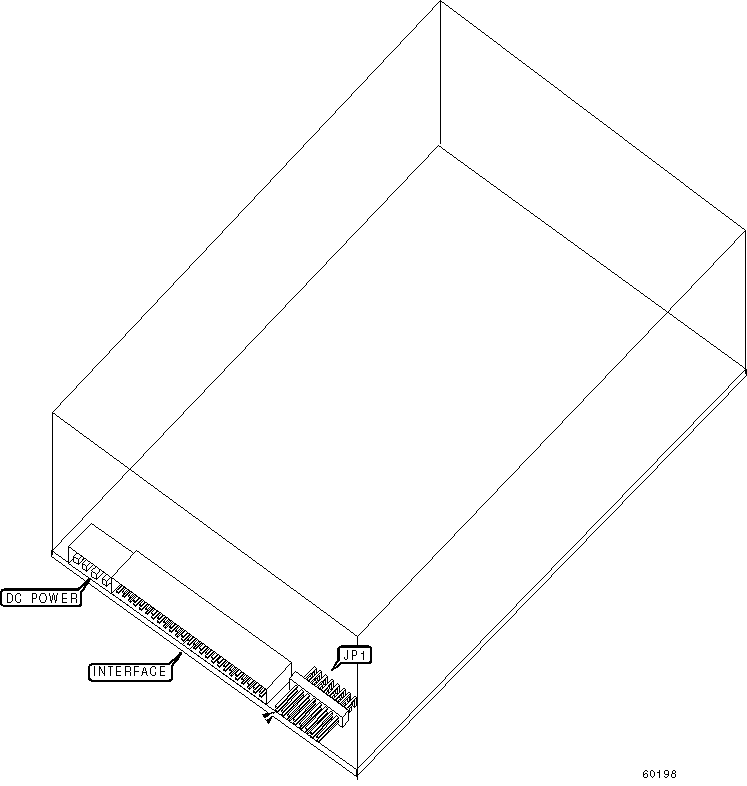

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Parity check enabled	JP1/jumper 4	Open
	Parity check disabled	JP1/jumper 4	Closed
»	Eject function starts 10ms after pressing eject button	JP1/jumper 5	Open
	Eject function starts 5 seconds after pressing eject button	JP1/jumper 5	Closed
»	Unit Attention enabled	JP1/jumper 6	Open
	Unit Attention disabled	JP1/jumper 6	Closed

DRIVE SELECT ID
Drive ID		JP1/jumper 1	JP1/jumper 2	JP1/jumper 3
»	0	Open	Open	Open
	1	Closed	Open	Open
	2	Open	Closed	Open
	3	Closed	Closed	Open
	4	Open	Open	Closed
	5	Closed	Open	Closed
	6	Open	Closed	Closed
	7	Closed	Closed	Closed

MODE SELECTION
Mode description	Mode ID	JP7	JP8
Rewritable	0	Open	Open
WORM	1	Closed	Open
SCSI-2	2	Open	Closed
Proprietary rewritable	3	Closed	Closed

MISCELLANEOUS TECHNICAL NOTES

Two terminating resistors are installed at the bottom of the drive. To disable termination - remove resistors.
