BIZCOMP

PC:INTELLIMODEM (300/1200 BAUD)

Card Type

Modem(synchronous/asynchronous)

Chip Set

Unidentified

Maximum Data Rate

1200bps

Data Bus

8 bit ISA

Data Modulation Protocol

Bell 212A

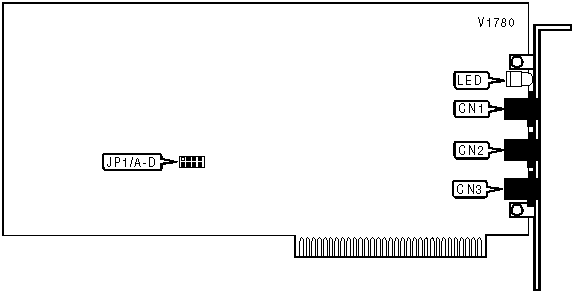

CONNECTIONS

Function

Label

Function

Label

Handset

CN1

Line in

CN3

Line out

CN2



SERIAL PORT ADDRESS

Setting

JP1/A

JP1/B

JP1/C

JP1/D

COM1 (3F8h)

Open

Open

Closed

Closed

í COM2 (2F8h)

Closed

Closed

Open

Open

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED

Red

On

Power is on

LED

Red

Off

Power is off

Proprietary AT Command Set

DIAL INTERRUPT

Type

Immediate

Format

AT K

Description

Terminates dialing.

SPEED

Type

Configuration

Format

AT [cmds] SBn [cmds]

Description

Selects modem data rate

Command

Function

SB0

300bps

SB1

110bps

SB2

1200bps
