DIGI INTERNATIONAL, INC.

PC IMAC ISA

Card Type

ISDN CSU/DSU

Chip Set

Unidentified

ISDN Transfer Rate

64Kbps/128Kbps

Data Bus

16-bit ISA

ISDN Protocol

5ESS, DMS-100, National

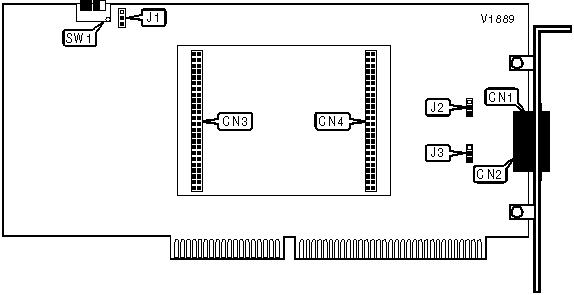

CONNECTIONS

Function

Label

Function

Label

Line out

CN1

IDP module headers

CN3 & CN4

Line in

CN2



USER CONFIGURABLE SETTINGS

Setting

Label

Position

Factory configured - do not alter

SW1/4

On

Factory configured - do not alter

J1

Pins 1 & 2 closed

ISDN BUS TERMINATION

Setting

J2

J3

Terminated

Pins 1 & 2 closed

Pins 1 & 2 closed



Not terminated

Pins 2 & 3 closed

Pins 2 & 3 closed

BASE I/O ADDRESS

Setting

SW1/1

SW1/2

SW1/3

100h

On

Off

Off

110h

Off

On

Off

120h

On

On

Off

200h

Off

Off

On

220h

On

Off

On

300h

Off

On

On

320h

On

On

On

Disabled

Off

Off

Off
