LOGICODE TECHNOLOGY, INC.

14.4 INTERNAL (JUMPER VERSION)

Card Type

Modem (asynchronous)

Chipset

Unidentified

Maximum Data Rate

14.4Kbps

Maximum Fax Rate

14.4Kbps

Data Modulation

Bell 103A, 212A

ITU-T V.21, V.22, V.22bis, V.32, V.32bis

Fax Modulation

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, V.42, V.42bis

Fax Class

Class I & II

Data Bus

8-bit ISA

Card Size

Full-height, one-third length

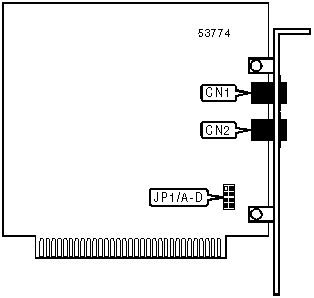

CONNECTIONS

Function

Label

Function

Label

Telephone line

CN1

Telephone line

CN2

SERIAL PORT ADDRESS SELECTION

Setting

JP1/A

JP1/B

3F8h (COM1:)

Open

Open

2F8h (COM2:)

Open

Closed

3E8h (COM3:)

Closed

Open

2E8h (COM4:)

Closed

Closed

INTERRUPT SELECTION

Setting

JP1/C

JP1/D

2

Closed

Closed

3

Open

Closed

4

Open

Open

5

Closed

Open

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, C, D, E, F, H, L, M, N, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &L, &P, &R, &S, &T, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \N, \O, \Q, \T, \U, \V, \X, \Y, \Z

%A, %C, %E, %G

Special AT Commands

-C, -J, "H, "O

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S25, S26

S27, S30, S37, S95

Note: See MHI help file for complete information.

Proprietary AT Command Set

See LOGICODE TECHNOLOGY, INC. 9600 EXTERNAL for a full command summary.
