LUCENT TECHNOLOGIES
RDSP/9432-I, RDSP/9464-I
Card Type |
Telephony |
I/O Options |
Telephone in/out (4) |
Data Bus |
8/16-bit ISA |

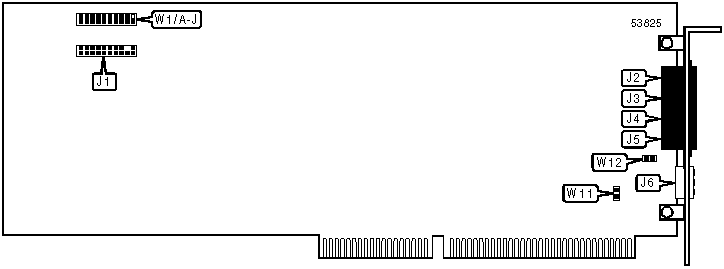

CONNECTIONS | |||
Function |
Label |
Function |
Label |
Daisy-chain connector |
J1 |
Line 4 |
J5 |
Line 1 |
J2 |
Audio out |
J6 |
Line 2 |
J3 |
Analog signal ground |
W11 |
Line 3 |
J4 |
Digital signal ground |
W12 |
BASE I/O ADDRESS | |||||||||||
Setting |
W1/A |
W1/B |
W1/C |
W1/D |
W1/E |
W1/F |
W1/G |
W1/H |
W1/I |
W1/J | |
000h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed | |
001h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Open | |
002h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Open |
Closed | |
003h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Open |
Open | |
004h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Open |
Closed |
Closed | |
» |
300h |
Open |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
3FBh |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
3FCh |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Closed | |
3FDh |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
3FEh |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
3FFh |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
Note: A total of 1023 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. W1/A is the Most Significant Bit and jumper W1/J is the Least Significant Bit. The jumpers have the following decimal values: W1/A=512, W1/B=256, W1/C=128, W1/D=64, W1/E=32, W1/F=16, W1/G=8, W1/H=4, W1/I=2, W1/J=1. Open the jumpers and add the values of the open jumpers to obtain the correct memory address. (Open=1, Closed=0) |
