MIRO COMPUTER PRODUCTS, INC.

MIROCONNECT 34 WAVE

Card Type

Fax, Modem (asynchronous), Sound, Voice

Chip Set

Mwave MDSP-2780

I/O Options

Audio in, Audio out, CD-ROM audio (2), CD-ROM interface, Game/MIDI port, Microphone, Voice

Maximum DRAM

N/A

Maximum Modem Rate

28.8Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

16-bit ISA

Fax Class

Class I & II

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34

Fax Modulation Protocol

ITU-T V.17, V.27ter, V.29

Error Correction/Compression

MNP5, V.42bis

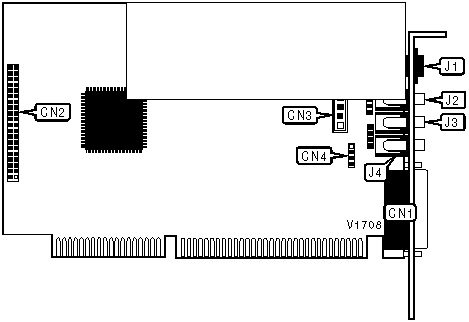

CONNECTIONS

Purpose

Label

Purpose

Label

Game/MIDI port

CN1

Line out - RJ-11

J1

IDE CD-ROM interface

CN2

Microphone in

J2

Mistumi CD - audio in

CN3

Audio in

J3

Sony/IDE CD - audio in

CN4

Audio out

J4

MISCELLANEOUS TECHNICAL NOTES

Note: Modem commands are not used directly, see the software program that controls the modem.
