MOTOROLA, INC.

6520/6560 MPROUTER SERVICE MODEM

Card Type

Modem (asynchronous)

Chip Set

Unidentified

I/O Options

Unidentified

Maximum Data Rate

2400bps

Data Bus

8-bit ISA

Data Modulation Protocol

V.22bis

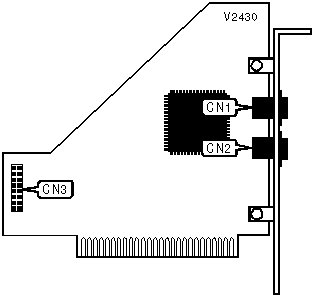

CONNECTIONS

Function

Label

Function

Label

Line out

CN1

Unidentified

CN3

Line in

CN2



MISCELLANEOUS TECHNICAL NOTE

This card is designed for use in Motorola’s 6520/6560 MPRouter system and will not function in another system. See documents M3596 and M3597 for more information.
