6520/6560 MPROUTER DSPM/FXS CARD

Card Type

Telephony

Chip Set

Unidentified

I/O Options

Telephone in/out (2), MVIP bus

Data Bus

16-bit ISA

Line Type

FXS

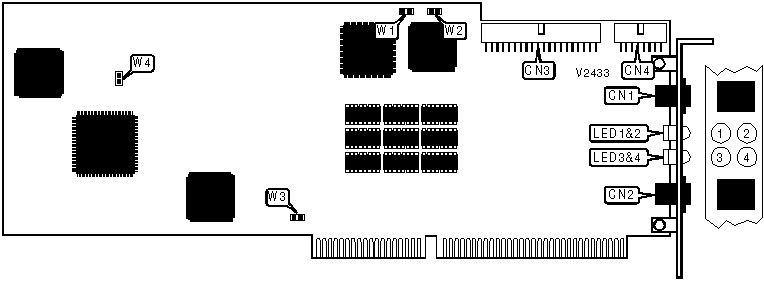

CONNECTIONS

Function

Label

Function

Label

Line 1

CN1

MVIP bus

CN3

Line 2

CN2

48V DC power in

CN4

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

W3

Unidentified

»

Factory configured - do not alter

W4

Unidentified

MVIP BUS TERMINATION (NOT USED)

Setting

W1

W2

»

Not terminated

Open

Open



Terminated

Closed

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Line 1 local connection is off hook

LED1

Green

Off

Line 1 local connection is on hook

LED2

Green

On

Line 1 remote connection is off hook

LED2

Green

Off

Line 1 remote connection is on hook

LED3

Green

On

Line 2 local connection is off hook

LED3

Green

Off

Line 2 local connection is on hook

LED4

Green

On

Line 2 remote connection is off hook

LED4

Green

Off

Line 2 remote connection is on hook

MISCELLANEOUS TECHNICAL NOTE

This card is designed for use in Motorola’s 6520/6560 MPRouter system and will not function in another system. See documents M3596 and M3597 for more information.

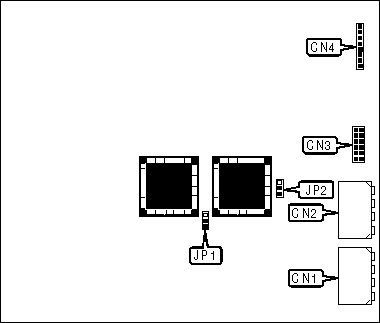

CONNECTIONS

Function

Label

Function

Label

Connector to computer power supply

CN1

Status connector

CN3

Connector to computer power supply

CN2

48V DC power out

CN4

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Ring generation enabled

JP1

Pins 2 & 3 closed



Ring generation disabled

JP1

Pins 1 & 2 closed

»

Ring frequency set to 25Hz

JP2

Pins 2 & 3 closed



Ring frequency set to 50Hz

JP2

Pins 1 & 2 closed

MISCELLANEOUS TECHNICAL NOTE

This power supply can power up to two DSPM/FXS cards via an included multi-connector cable.
