RAD DATA COMMUNICATIONS

SRM-6AC

Modem Type

Data (Asynchronous)

Maximum Data Rate

19.2Kbps

Data Bus

External

Data Modulation Protocol

Proprietary

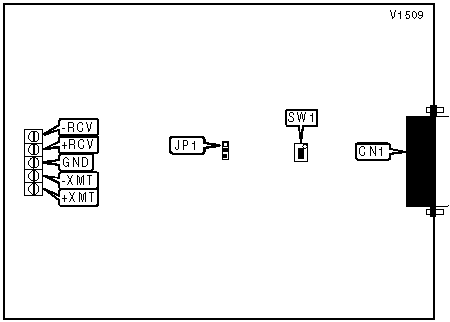

CONNECTIONS

Purpose

Location

Purpose

Location

RS-232/422

CN1

Ground

GND

Receive positive

+RCV

Transmit positive

+XMT

Receive negative

-RCV

Transmit negative

-XMT

CD SIGNAL

Setting

JP1

» Forced high

Pins 1 & 2 closed

Normal

Pins 2 & 3 closed

DCE/DTE SELECTOR

Setting

SW1

» DCE

On

DTE

Off
