RHETOREX, INC.
VANTAGE VRS
Card Type |
Telephony |
I/O Options |
MVIP bus |
Data Bus |
16-bit ISA |

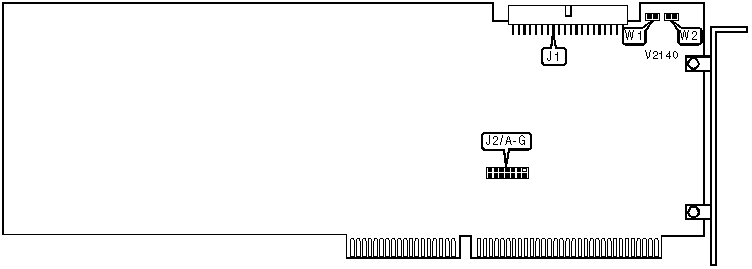

CONNECTIONS | |
Function |
Label |
MVIP bus |
J1 |
MVIP BUS TERMINATION | |||
Setting |
W1 |
W2 | |
» |
Terminated |
Closed |
Closed |
Not terminated |
Open |
Open |
BASE I/O ADDRESS | ||||||||
Setting |
J2/A |
J2/B |
J2/C |
J2/D |
J2/E |
J2/F |
J2/G | |
000h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed | |
008h |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
Open | |
020h |
Closed |
Closed |
Closed |
Closed |
Open |
Closed |
Closed | |
028h |
Closed |
Closed |
Closed |
Closed |
Open |
Closed |
Open | |
030h |
Closed |
Closed |
Closed |
Closed |
Open |
Open |
Closed | |
» |
300h |
Open |
Open |
Closed |
Closed |
Closed |
Closed |
Closed |
3D8h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
3E0h |
Open |
Open |
Open |
Open |
Open |
Closed |
Closed | |
3E8h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
3F0h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
3F8h |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
Note: A total of 127 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. J2/A is the Most Significant Bit and jumper J2/G is the Least Significant Bit. The jumpers have the following decimal values: J2/A=512, J2/B=256, J2/C=128, J2/D=64, J2/E=32, J2/F=16, J2/G=8. Open the jumpers and add the values of the open jumpers to obtain the correct memory address. (Open=1, Closed=0) |
