PATTON ELECTRONICS COMPANY

2017P/2017P60

Card Type

Current Loop Converter

Chip Set

Unidentified

I/O Options

25-pin serial port (RS-232),

network interface via RJ-45, RJ-11 or terminal block

Wiring Type

Unshielded twisted pair

Maximum Data Rate

115.2Kbps

Data Bus

External

CONNECTIONS

Function

Label

Function

Label

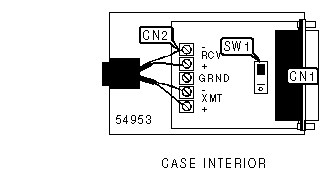

DTE/DCE serial port (25-pin connector)

CN1

Twisted pair connection terminal blocks

CN2

Note: Unit available with RJ-11, RJ-45, or terminal block twisted pair connector

USER CONFIGURABLE SETTINGS

Setting

Label

Position

DTE mode

SW1

On

DCE mode

SW1

Off

MISCELLANEOUS TECHNICAL NOTES

Patton Electronics model 2017P allows an asynchronous RS-232 device to communicate with a 20mA current loop device. Model 2017P60 is compatible with 60mA current loop devices.
