ACTIX SYSTEMS, INC.

GRAPHICS ENGINE DISPLAY ACCELERATOR

Card Type

Video card

Video Chip Set

Unidentified

Highest Resolution Supported

1024 x 768

Maximum Video Memory

1MB VRAM

Data Bus

16-bit ISA

Video Types Supported

XVGA

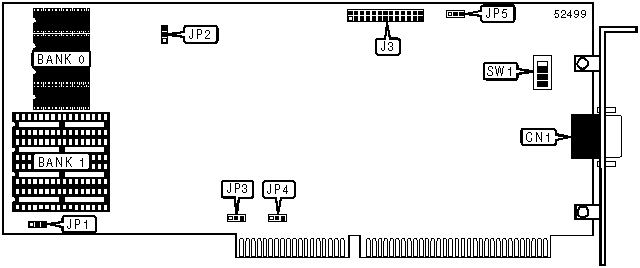

CONNECTIONS

Function

Label

15-pin video analog port

CN1

Feature connector

J3

USER CONFIGURABLE SETTINGS

Function

Label

Position

512KB VRAM installed

JP1

Pins 1 & 2 closed



1MB VRAM installed

JP1

Pins 2 & 3 closed

Engine speed 70Mhz

JP2

Pins 2 & 3 closed



Engine Speed 55Mhz

JP2

Pins 1 & 2 closed



IRQ9 enabled

JP3

Pins 1 & 2 closed



IRQ9 disabled

JP3

Pins 2 & 3 closed

Factory configured - do not alter

JP4

Unidentified



MIDI option enabled

JP5

Pins 1 & 2 closed



Sense option enabled

JP5

Pins 2 & 3 closed

Zero wait states disabled

SW1/3

Off



Zero Wait states enabled

SW1/3

On

8 bit Bios

SW1/4

On



8 bit Bios

SW1/4

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

512KB

(4) 128K x 8

None

1MB

(4) 128K x 8

(4) 128K x 8

DISPLAY CONFIGURATION

Display

Horizontal Frequency

Refresh at 1024x768

SW1/1

SW1/2

VGA, Super VGA

31.5, 35.5 KHz

43.5 Hz

Off

Off

Multi-Sync, 38 KHz

30-38 KHz

43.5 Hz

Off

On

Multi-Sync, 48 KHz

30-48 KHz

60 Hz

On

Off

Multi-Sync, 57 KHz

30-57 KHz

72 Hz

On

On
