Card Type	Video card
Video Chip Set	ATI
Highest Resolution Supported	800 x 600
Maximum Video Memory	256KB DRAM
Data Bus	8-bit ISA
Video Types Supported	XVGA

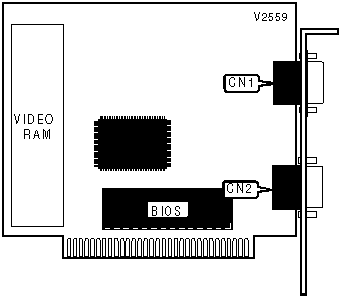

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	9-pin digital video port	CN2

DRAM CONFIGURATION

Note:The configuration of the DRAM is unidentified.
