DIAMOND FLOWER, INC.

VG-5600/VG-5600H

Category

Video

Video Types Supported

XVGA

Video Processor

ET4000

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1024KB

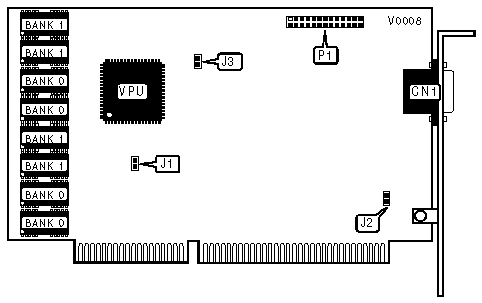

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature port

P1

INTERRUPT SELECTION

IRQ 2/9

J2

»

Disabled

Open



Enabled

Closed

WAIT STATE SELECTION

Setting

J3

»

1 wait state (normal operation)

Pins 2 & 3 closed



0 wait state (enhanced operation)

Pins 1 & 2 closed

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

J1

Pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

512KB

(4) 44256

NONE

1024KB

(4) 44256

(4) 44256
