CARDEXPERT TECHNOLOGY, INC.

CARDEX W32 XVGA VLB

Category

Video

Video Types Supported

XVGA

Video Processor

ET4000/W32

Highest Resolution Supported

1280 X 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

2048KB

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature connector

CN2

INTERRUPT SELECTION

IRQ 2/9

JP1

»

Disabled

Pins 1 & 2 closed



Enabled

Pins 2 & 3 closed

WAIT STATE SELECTION

Memory wait state

I/O wait state

JP2

JP3



1

3

Pins 1 & 2 closed

Pins 1 & 2 closed

»

2

4

Pins 2 & 3 closed

Pins 1 & 2 closed



3

3

Pins 1 & 2 closed

Pins 2 & 3 closed



4

4

Pins 2 & 3 closed

Pins 2 & 3 closed

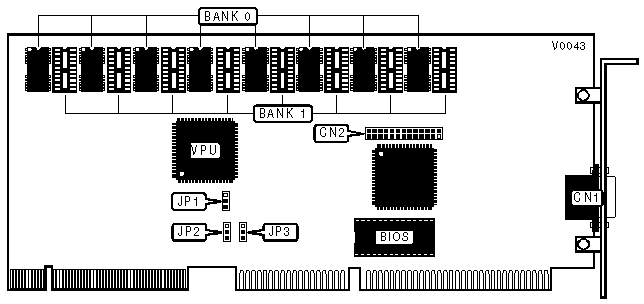

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1024KB

(8) 44256

None

2048KB

(8) 44256

(8) 44256
