DIAMOND MULTIMEDIA SYSTEMS, INC.

STEALTH 3D 2000 ( WITH MEMORY UPGRADE SOCKETS)

Card Type

Graphics adapter

Video Chip Set

Unidentified

Maximum Video Memory

4MB EDO DRAM

Video Types Supported

VGA, XVGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit PCI

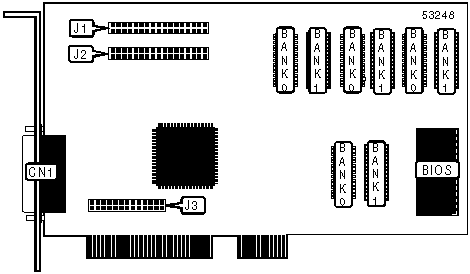

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

LPB connector

J2

LPB connector

J1

Unidentified connector

J3

DRAM JUMPER CONFIGURATION

Size

Bank 0

Bank 1

2MB

(4) 512 KB

None

4MB

(4) 512 KB

(4) 512 KB
