DIAMOND FLOWER, INC.

WG-6000 (REV. A+)

Card Type

Video card

Video Chip Set

Tseng Labs

Maximum Video Memory

4/4.5MB MDRAM

Video Types Supported

VGA

Highest Resolution Supported

1280 X 1024

Data Bus

32-bit PCI

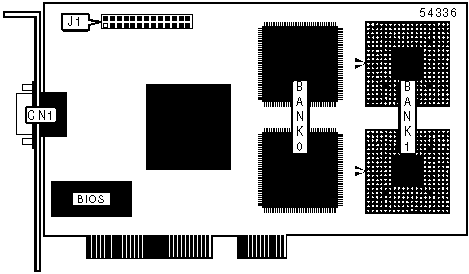

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

J1

VIDEO MEMORY CONFIGURATION (MDRAM)

Size

Bank 0

Bank 1

2 MB

(2) 256KB x 3

None

2.5 MB

(2) 288KB x 32

None

4 MB

(2) 256KB x 3

(2) 256KB x 3

4.5 MB

(2) 288KB x 32

(2) 288KB x 32
