DATAEXPERT

DSP6430

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

2MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit VESA Local Bus

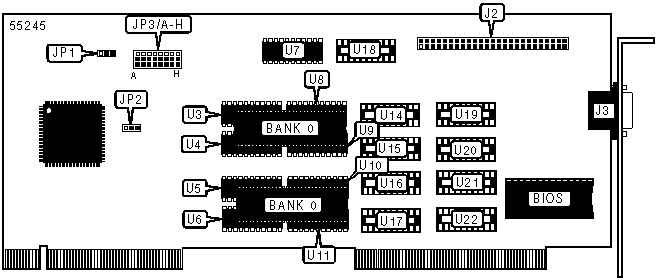

CONNECTIONS

Function

Label

Function

Label

Feature connector (VGA/VESA)

J2

15-pin analog video port

J3

BUS SPEED SELECTION

Setting

Label

Position

»

< = 33 MHz

JP1

Pins 1 & 2 closed



> = 33 MHz

JP1

Pins 2 & 3 closed

WAIT STATE SELECTION

Setting

Label

Position

»

0

JP2

Pins 2 & 3 closed



1

JP2

Pins 1 & 2 closed

VIDEO MEMORY JUMPER CONFIGURATION

Setting

JP3/A

JP3/B

JP3/C

JP3/D

U3-U6, U7A, U8-U13 as Bank 0

1 & 2

1 & 2

1 & 2

1 & 2

U14-U22 as Bank 0

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated are in the closed position.

VIDEO MEMORY JUMPER CONFIGURATION

Setting

JP3/E

JP3/F

JP3/G

JP3/H

U3-U6, U7A, U8-U13 as Bank 0

1 & 2

1 & 2

1 & 2

1 & 2

U14-U22 as Bank 0

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated are in the closed position.

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(8) 256KB x 4

None

2MB

(8) 256KB x 4

(8) 256KB x 4

XRAM CONFIGURATION

Size

Bank 2

Bank 3

1MB

(1) 256KB x 4

None

2MB

(1) 256KB x 4

(1) 256KB x 4
