ELSA, INC.

WINNER 3000-L, WINNER 3000-M

Card Type

Video card

Video Chip Set

S3, Inc.

Maximum Video Memory

WINNER 3000-M 2MB DRAM, 2MB VRAM

WINNER 3000-L 2MB DRAM, 4MB VRAM

Video Types Supported

VGA

Highest Resolution Supported

WINNER 3000-M 1600 x 1280,

WINNER 3000-L 1920 x 1200

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

Function

Label

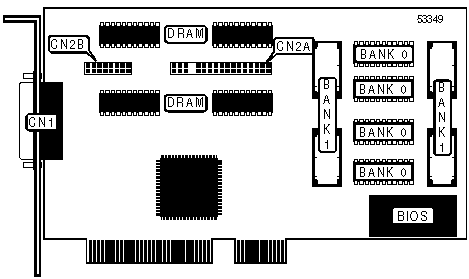

15-pin analog video port

CN1

Propritary connector

CN2B

Vesa feature connector

CN2A



VIDEO MEMORY CONFIGURATION (VRAM)

Size

Bank 0

Bank 1

2MB

(4) 512KB

None

4MB

(4) 512KB

(4) 512KB
