LEADTEK RESEARCH, INC.

WINFAST 3D L2300 AGP

Card Type

Video accelerator

Video Chip Set

3D Labs

Maximum Video Memory

8MB SGRAM

Video Types Supported

XVGA

Highest Resolution Supported

1600 x 1200

Data Bus

AGP

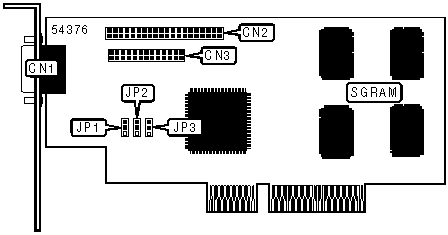

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

VMI connector

CN3

VMI connector

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

VGA enabled

JP1

Pins 1 & 2 closed



VGA disabled

JP1

Pins 2 & 3 closed

PCI class 2.1

JP2

Pins 2 & 3 closed



PCI class 2.0

JP2

Pins 1 & 2 closed

VGA fixed addressing enabled

JP3

Pins 1 & 2 closed



VGA fixed addressing disabled

JP3

Pins 2 & 3 closed
