LEADTEK RESEARCH, INC.

WINFAST 3D L3100

Card Type

Video Card

Video Chip Set

3D Labs

Maximum Video Memory

16MB VRAM, 80MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

32-bit AGP

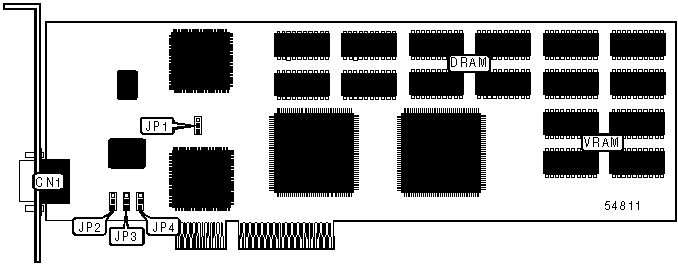

CONNECTIONS

Function

Label



15-pin analog video port

CN1



USER CONFIGURABLE SETTINGS

Function

Label

Position

On-board VGA enabled

JP1

Pins 1 & 2 closed

On-board VGA disabled

JP1

Pins 2 & 3 closed

AGP, Class code: 030000 (VGA-compatible controller)

JP2

Pins 1 & 2 closed

AGP, Class code: 000100h (VGA-compatible device)

JP2

Pins 2 & 3 closed

VGA enabled

JP3

Pins 1 & 2 closed

VGA disabled

JP3

Pins 2 & 3 closed

VGA fixed addressing enabled

JP4

Pins 1 & 2 closed

VGA fixed addressing disabled

JP4

Pins 2 & 3 closed
