MEDIA VISION TECHNOLOGY, INC.

PRO GRAPHICS 1280 (650-0075-02)

Card Type

Video card

Video Chip Set

Cirrus Logic

Maximum Video Memory

256K DRAM/4MB VRAM

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit VESA Local Bus

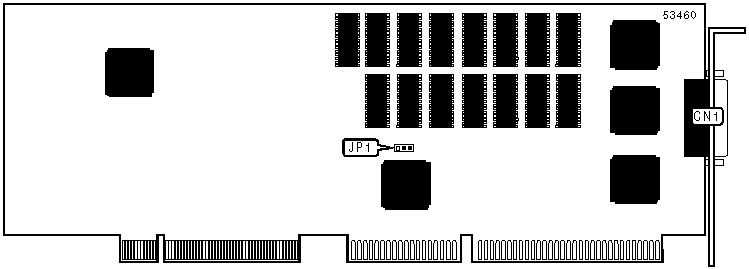

CONNECTIONS

Function

Label

15-pin analog video port

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

VGA - enabled

JP1

Pins 1 & 2 closed



VGA - disabled

JP1

Pins 2 & 3 closed
