ORCHID TECHNOLOGY

VIDIOLA PRO, VIDIOLA PREMIUM

Card Type

Video card

Video Chip Set

Orchid Technology

Maximum Video Memory

1.5MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

800 x 600

Data Bus

16-bit ISA

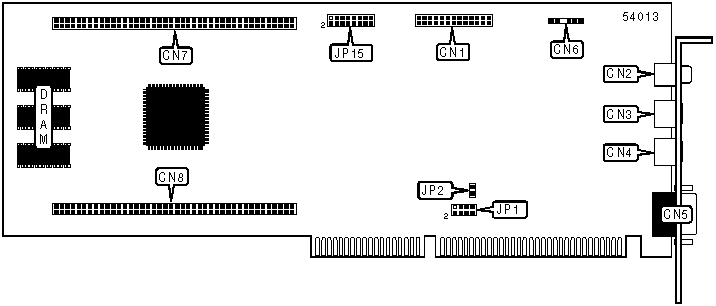

CONNECTIONS

Function

Label

Function

Label

Feature connector

CN1

15-pin analog video port

CN5

Composite Video in

CN2

S-video 5-pin cable connector

CN6

S-video in

CN3

Daughtercard connector

CN7

VGA in

CN4

Daughtercard connector

CN8

VGA COMPATIBILITY SELECTION

Setting

JP15

Normal VGA operation

Pins 1 & 2 closed



Option 1

Pins 3 & 4, 5 & 6 closed



Option 2

Pins 3 & 4, 7 & 8 closed



Option 3

Pins 3 & 4, 9 & 10 closed



Option 4

Pins 3 & 4, 11 & 12 closed

BASE I/O ADDRESS SELECTION

Setting

JP2

700h

Open



600h

Closed

SERIAL PORT INTERRUPT SELECTION

IRQ

JP1



IRQ 5

Pins 15 & 16 closed



IRQ 6

Pins 13 & 14 closed



IRQ7

Pins 11 & 12 closed

IRQ 10

Pins 9 & 10 closed



IRQ 11

Pins 7 & 8 closed



IRQ 12

Pins 5 & 6 closed



IRQ 14

Pins 3 & 4 closed



IRQ 15

Pins 1 & 2 closed

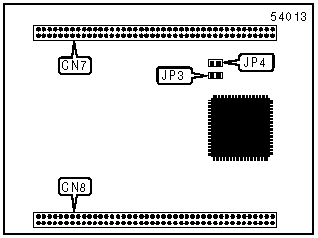

Vidiola Premium Daughtercard

CONNECTIONS

Function

Label

Function

Label

Daughtercard connector

CN7

Daughtercard connector

CN8

COMPRESSOR BASE ADDRESS SELECTION

Setting

JP4

JP3

380-387h

Closed

Closed

3A0-3A7h

Closed

Open

3CO-3C7h

Open

Closed

3EO-3E7h

Open

Open

Vidiola S-Video Sub card

CONNECTIONS

Function

Label

Function

Label

S-video in

CN3

S-video 5-pin cable connector

CN6A

S-video out

CN4
