PIXELWORKS, INC.

CLIPPER

Category

Video

Video Types Supported

CGA, VDI, CGI

Video Processor

Unidentified

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA and 8-bit ISA

Memory Type

VRAM

Maximum Onboard Memory

1.25MB (Exact location of memory is unidentified)

CONNECTIONS

Purpose

Location

Purpose

Location

Red signal

J1

Green & sync signals

J2

Blue signal

J3

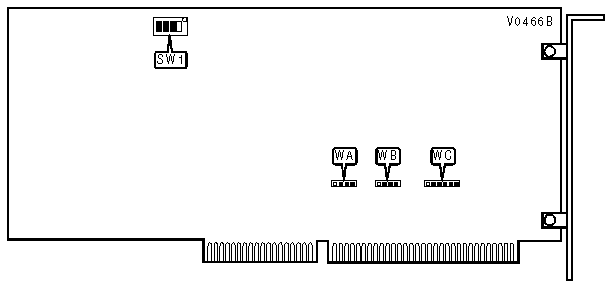

RESOLUTION SELECTION

Resolution

W5

W6

W7

1020 x 816

Closed

Open

Pins 2 & 3 closed

1280 x 1024

Open

Closed

Pins 1 & 2 closed

DMA CHANNEL SELECTION

Channel

WA

WB

6

Pins 1 & 2 closed

Pins 1 & 2 closed

7

Pins 3 & 4 closed

Pins 3 & 4 closed

INTERRUPT SELECTION

IRQ

WC

10

Pins 1 & 2 closed

11

Pins 3 & 4 closed

12

Pins 5 & 6 closed

RESOLUTION SELECTION

Resolution

SW1/1

1020 x 816

On

1280 x 1024

Off

ADDRESS SELECTION

Address

SW1/2

330h

Off

340h

On

CGA EMULATION CONFIGURATION

Mode

SW1/4

Disabled

Off

Enabled

On

FACTORY CONFIGURED - DO NOT ALTER

Switch

Position

SW1/3

Off

MISCELLANEOUS TECHNICAL NOTE

These two cards are attached at the corners and must be installed in two adjacent slots simultaneously. When viewed from the backplate end, the card on the right is V0466A, and the card on the left is V0466B.
