Category	Video
Video Types Supported	XVGA
Video Processor	Cirrus Logic, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	1MB

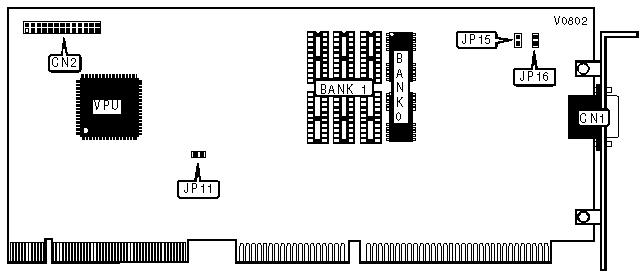

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature connector	CN2

IRQ9
» Setting		JP11
»	Enabled	Closed
»	Disabled	Open

PERFORMANCE
» Setting		JP15	JP16
»	Normal	Closed	Closed
»	High	Open	Open

DRAM CONFIGURATION
» Size		Bank 0	Bank 1
»	512KB	(2) 256K x 4	None
»	1MB	(2) 256K x 4	(6) 256K x 4
