PIXELWORKS, INC.

ULTRA CLIPPER GRAPHICS UA1024

Category

Video

Video Types Supported

XVGA

Video Processor

Pixelworks, Inc.(exact location unidentified)

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

875KB

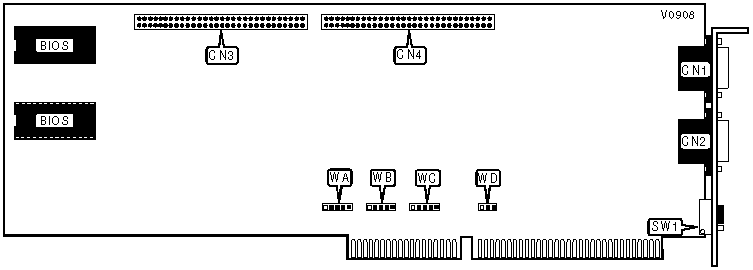

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA pass-through port

CN2

Daughterboard connector

CN3 & CN4



BASE I/O ADDRESS SELECTION

Address

WD

330h

Pins 1 & 2 closed



340

Pins 2 & 3 closed

DMA SELECTION

Channel

WA

WB

6

Pins 1 & 2 closed

Pins 1 & 2 closed



5

Pins 4 & 5 closed

Pins 4 & 5 closed



7

Pins 2 & 3 closed

Pins 2 & 3 closed

INTERRUPT SELECTION

IRQ

WC

10

Pins 1 & 2 closed



11

Pins 2 & 3 closed



12

Pins 4 & 5 closed

MONITOR SYNC MODE SELECTION

Mode

SW1/3

SW1/4

3

Off

Off



4

On

Off



5

On

On

CGA EMULATION CONFIGURATION

Setting

SW1/1

Enabled

On

Disabled

Off

VGA PASS-THROUGH CONFIGURATION

Setting

SW1/2

Enabled

On

Disabled

Off
