REVEAL COMPUTER PRODUCTS

VC400

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

1MB VRAM

Video Types Supported

VGA

Highest Resolution Supported

1024 x 768

Data Bus

16-bit ISA

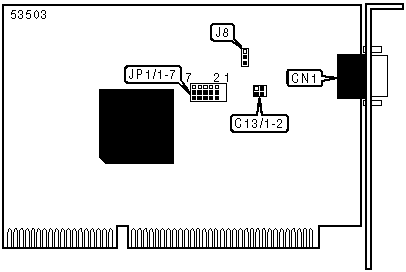

CONNECTIONS

Function

Label

9-pin digital video port

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

IRQ 5 enabled

C13/1

Closed



IRQ 2 enabled (not used)

C13/2

Closed

Mouse port disabled

J8

Pins 1 & 2 closed



Mouse port enabled

J8

Pins 2 & 3 closed

USER CONFIGURABLE SETTINGS (CONTINUED)

Function

JP1/2

JP1/3

JP1/4

JP1/5

JP1/6

JP1/7

Unidentified

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Note: Designated pins are closed. JP1/1 has no configurable settings.
