PHILIPS CONSUMER ELECTRONICS, CO.

PCA11MP

Card Type

MPEG decoder

Video Chip Set

Unidentified

Maximum Video Memory

I/O Options

Unidentified

Speaker/line out, TV out, video port (2)

Video Types Supported

VGA, XVGA

Highest Resolution Supported

Unidentified

Data Bus

16-bit ISA

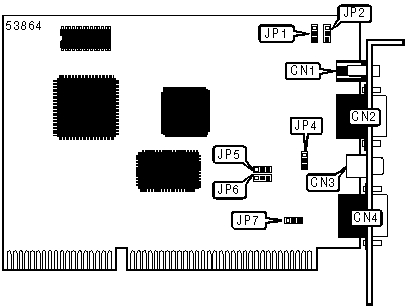

CONNECTIONS

Function

Label

Function

Label

Speaker/line out

CN1

TV out

CN3

15-pin analog video port

CN2

15-pin analog video port

CN4

SPEAKER/LINE OUT

Function

JP1

JP2

»

Speaker out

Pins 2 & 3 closed

Pins 2 & 3 closed



Line out

Pins 1 & 2 closed

Pins 1 & 2 closed

MODE SELECTION

MODE

JP4

JP5

JP6

JP7

NTSC TV

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

PAL TV

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed
