STB SYSTEMS, INC.

MVP-2/MC

Card Type

Video card

Video Chip Set

Tseng Labs ET4000

Highest Resolution Supported

1280 x 1024

Maximum Video Memory

2MB DRAM

Data Bus

MCA

Video Types Supported

XVGA

CONNECTIONS

Function

Label

Function

Label

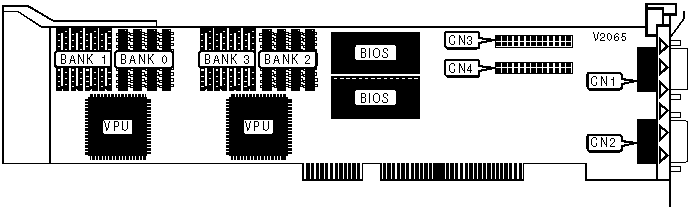

VGA port 1 - 15-pin

CN1

VGA feature connector for channel 1

CN3

VGA port 2 - 15-pin

CN2

VGA feature connector for channel 2

CN4

DRAM - CHANNEL 1

Size

Bank 0

Bank 1

512KB

(4) 128KB

NONE

1MB

(4) 128KB

(4) 128KB

DRAM - CHANNEL 2

Size

Bank 2

Bank 3

512KB

(4) 128KB

NONE

1MB

(4) 128KB

(4) 128KB
