SIIG, INC.

SUPER VGA MASTER VL (VER.2)

Card Type

Video card

Chip Set

Cirrus Logic, Inc.

Maximum Onboard Memory

2MB DRAM

Data Bus

32-bit VESA Local Bus

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

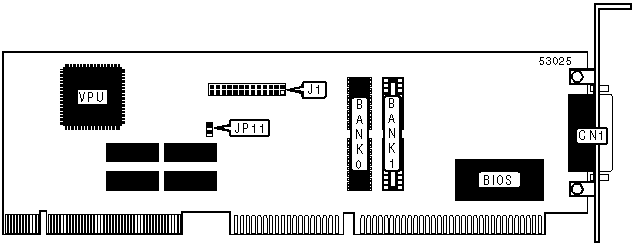

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

J1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

IRQ9 disabled

JP11

Open



IRQ9 enabled

JP11

Closed

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

1MB

(2) 512KB x 8

None

2MB

(2) 512KB x 8

(2) 512KB x 8
