UNIDENTIFIED

V2VB

Category

Video

Video Types Supported

XVGA

Video Processor

Avance Logic ALG2228

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA local bus

Memory Type

DRAM

Maximum Onboard Memory

2MB

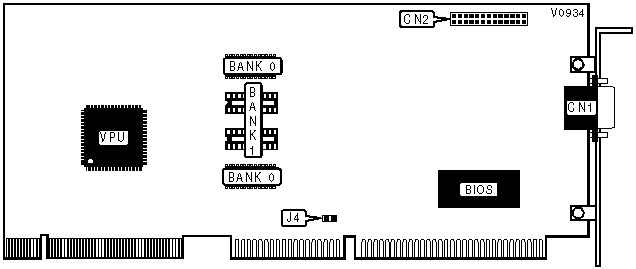

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

ADS DELAY CONFIGURATION

Setting

J4

»

Disabled

Closed



Enabled

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256K x 16

NONE

2MB

(2) 256K x 16

(2) 256K x 16
