WESTERN DIGITAL CORPORATION

PARADISE COLOR/MONO CARD

Card Type

Video card

Video Chip Set

Paradise

Highest Resolution Supported

640 x 350

Maximum Video Memory

16KB RAM (Type unidentified)

Data Bus

8-bit ISA

Video Types Supported

CGA/MDA

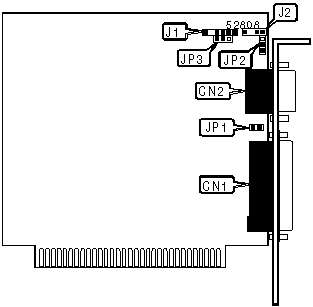

CONNECTIONS

Function

Label

Function

Label

Parallel printer port

CN1

Light pen connector

J1

9-pin analog video port

CN2

RF connector

J2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Parallel port enabled

JP1

Closed



Parallel port disabled

JP1

Open

DISPLAY SELECTION

Setting

JP2

JP3

Monochrome

Pins 1 & 2 closed

Pins 1 & 2 closed

Color

Pins 2 & 3 closed

Pins 2 & 3 closed
