VTECH INDUSTRIES, INC.

VGA

Card Type

Video card

Video Chip Set

Trident

Maximum Video Memory

512KB DRAM

Video Types Supported

Monochrome, EGA, CGA, VGA

Highest Resolution Supported

1024 x 768

Data Bus

16-bit ISA

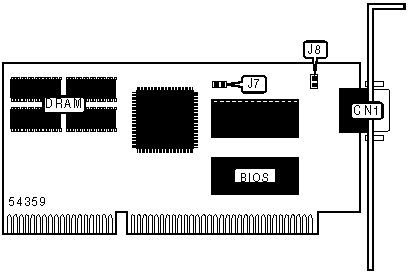

CONNECTIONS

Function

Label

15-pin analog video port

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Scan rate < 48.7KHz

J7

Closed



Scan rate > 48.7KHz

J7

Open

BIOS autodetect enabled

J8

Open



BIOS autodetect disabled

J8

Closed

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

256KB

(2) 256KB x 4

None

512KB

(2) 256KB x 4

(2) 256KB x 4

Note: memory banks are unidentified.
