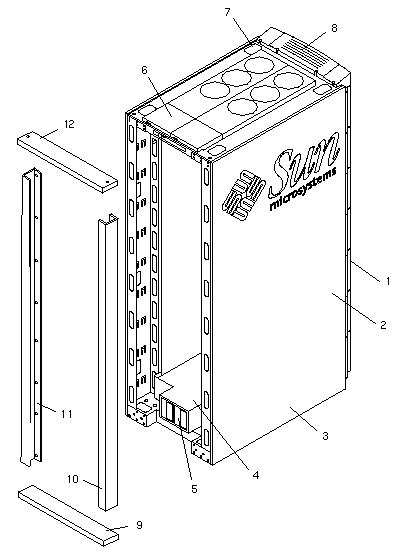

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-3684 |
Curved 7-Panel Door |
| 2 |
540-4613
540-4621
540-4579
340-4173 |
Cabinet Assembly
Cabinet Subassembly
Cabinet Subassembly
Cabinet Frame |
| 3 |
340-4373 |
Side Panel |
| 4 |
300-1335 |
Redundant Transfer Unit |
| 5 |
300-1396 |
Redundant Transfer Switch |
| 6 |
540-3662 |
Fan Tray |
| 7 |
330-6728 |
Cosmetic Cap |
| 8 |
540-3883 |
Frame Manager |
9
10
11
12 |
595-5721
340-6728
540-4857
540-4857
540-4674 |
Cabinet Extension Option 4347
 Kickplate Extension
Right Extension
Left Extension
Top Extension |
| NS |
180-1943 |
Power Cord, Harting Han 6HsB to NEMA L6-30P |
| NS |
180-1944 |
Power Cord, Harting Han 6HsB to IEC309 |
| NS |
180-1945 |
IEC320 to AMP Mate-N-Lok Power Cord, 2M |
| NS |
180-1948 |
IEC320 to AMP Mate-N-Lok Power Cord, 3M |
| NS |
230-1536 |
Cabinet Leveler Foot (×4) |
| NS |
240-3379 |
Swivel Caster |
| NS |
240-3580 |
Empty AC Transfer Switch Filler Panel |
| NS |
240-3808 |
Anti-Tilt Bar Leveler Foot (×2) |
| NS |
530-2563 |
Frame Manager to Patch Panel Cable |
| NS |
530-2565 |
Fan Power Cable, Frame Manager to Fan Tray |
| NS |
530-2704 |
Key Switch Cable, Frame Manager to RTU |
| NS |
530-2939 |
IEC320 to AMP Mate-N-Lok Power Cord |
| NS |
540-4580 |
Flat Rear Door |
|
806-2942 |
 Sun
Fire Cabinet Installation Manual |
