Sun StorEdge[tm] A5200 Array: Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

Option #	Manufacturing Part #	Description	Substitute Part #
Backplane
n/a	501-4158 [F]	11-Slot FC Disk Backplane	n/a

Option #	Top Level Part #	Assembly FRU	Manufacturing Part #	Description	Substitute Part #
Disks
X6724A	595-5494	540-4525 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-6640 or Plate 340-7269	390-0035	Seagate ST336704FC (36.4GB 10000 RPM FC)	n/a
			390-0070	Seagate ST336605FC (36.4GB 10000 RPM FC-AL)	n/a
			390-0137	Seagate ST336607FC (36.4GB 10000 RPM FC-AL)	n/a
X6742A	595-5961	540-4905 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-6640 or Plate 340-7269	390-0071	Seagate ST373405FC (73.4GB 10000 RPM FC-AL)	n/a
X6742A	595-5961		390-0121	Seagate ST373307FC (73.4GB 10000 RPM FC-AL)	n/a
X6763A	595-6247	540-5178 [F] Spud Bracket FRU w 1" Bracket 540-3024 w Plate 340-6640 or Plate 340-7269	390-0099	Seagate ST336752FC (36.4GB 15000 RPM FC-AL)	n/a
X6710A [S]	595-4938	540-3869 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-4288 or 340-6640 or 340-5928 or 340-7269	370-3647	Seagate ST39102FC (9.1GB 10000 RPM FC)	n/a
X6710A [S]	595-4938		390-0016	Seagate ST39103FC (9.1GB 10000 RPM FC)	n/a
X6720A [S]	595-5216	540-4191 [F] Spud Bracket FRU w 1" Bkt 540-3024 w Plate 340-5928 or 340-6640 or 340-7269	390-0011	Seagate ST318203FC (18.2GB 10000 RPM FC-AL)	n/a
X6720A [S]	595-5216		390-0034	Seagate ST318304FC (18.2GB 10000 RPM FC-AL)	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Fast Write Cache Card
X6745A [S]	595-5463	375-0087 [F]	Sun StorEdge Fast Write Cache	n/a
X1075A [S]	595-4488	375-0012 [F]	32 MB NVRAM Board	n/a
X6738A [S]	595-5139	375-0087 [F]	Sun StorEdge Fast Write Cache	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Fibre Optic Cable
X973A	595-3378	537-1004 [F]	Fibre Optical Cable 2 Meter	n/a
X978A	595-3379	537-1006 [F]	Fibre Optical Cable 15 Meter	n/a
X9715A	595-5608	537-1020 [F]	Fibre Optical Cable 5 Meter	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Fibre Optic Hub
X6732A	595-4362	370-3012 [F]	FC-100 Hub / Sun StorEdge F100 Hub	n/a
X6746A	595-5816	540-4372 [F]	Sun StorEdge Network FC Switch-8	n/a
SG-XSW16-32P	595-5800	540-4751 [F]	Sun StorEdge Network FC Switch-16	n/a
n/a	n/a	370-4395 [F]	Brocade 8 port FCAL switch	n/a
n/a	n/a	370-4396 [F] 370-4863 [F]	Brocade 16 port FCAL switch Brocade 16 port switch	n/a n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
GBIC
X6731A	595-4359	370-2303 [F]	FC Short Wave GBIC	n/a
n/a	n/a	370-4379 [F]	FC Short Wave GBIC	370-2303 [F]
X6737A	595-5031	370-3722 [F] *	FC-AL Long Wave GBIC	n/a
* A Fiber Optic Tester (FOT) is required to support sites that use LW GBICs. Reference information about the FOT

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #	Previous Part #
Host Bus Adapter / Controller
X6727A	595-5853	375-3030 [F]	PCI Dual FC Network Adapter+	n/a	n/a
X6730A	595-4303	501-5266 [F]	FC SBus Card (FC100/S)	501-5202 [F]	501-3060 [F] 501-5202 [F]
X6748A	595-5715	375-0118 [F]	Compact PCI (cPCI) Dual Channel FC	n/a	n/a
X6767A	595-6425	375-3102 [F]	2GB PCI Single FC Network Adapter	n/a	n/a
X6768A	595-6426	375-3108 [F]	2GB PCI Dual FC Network Adapter	n/a	n/a
X6799A	595-5830	375-3019 [F]	PCI Single FC Host Adapter	n/a	n/a
X6729A [S]	595-4685	375-0040 [F]	FC PCI Card (FC100/P)	n/a	n/a

Option #	Manufacturing Part #	Description	Substitute Part #
Interconnect Assembly
n/a	540-2864 [F] (Consists of 501-2947 + 501-2948)	Interconnect Assembly	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Interface Board
X6734A	595-4358	501-2951 [F]	Interface Board	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Power Supply
X9687A	595-4357	300-1295 [F]	Zytec EPO71265 310 Watt Power Supply	n/a

Option #	Top Level Part #	Manufacturing Part #	Description	Substitute Part #
Rack Mount Kit
X9654A	595-4940	n/a	Sun StorEdge A5x00 68 inch Cabinet Mount Kit	n/a
X9655A	595-4951	n/a	Sun StorEdge A5x00 72 inch Cabinet Mount Kit	n/a
X6735A	595-4551	n/a	FC Hub Rack Mount Kit	n/a
X9818A	595-4999	n/a	72 inch Sun StorEdge Expansion Cabinet Front Door Kit	n/a
X9819A	595-4954	n/a	72 inch Sun StorEdge Expansion Cabinet Cooling Kit	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system

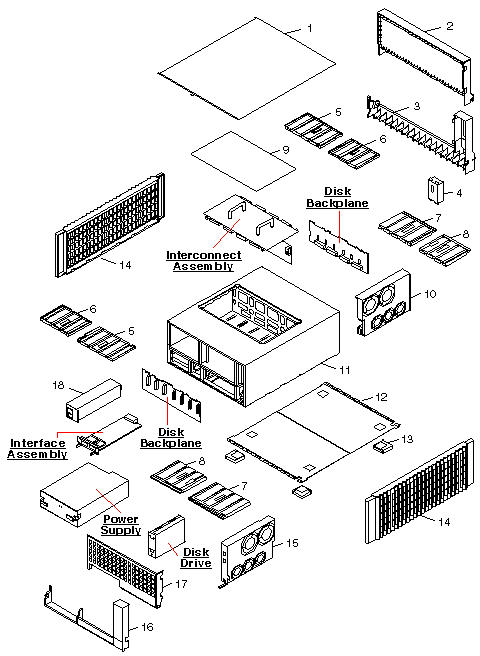

Exploded View

Table Legend

[F] = Field Replaceable Unit (FRU)

CODE	MANUFACTURING PART #	DESCRIPTION
1	540-3344	Top Door Assembly
2	540-2856 [F]	Front Door Assembly
3 3	540-2953 [F] 540-3348	Front Panel Assembly Front Panel Assembly without Logo
4	370-2311 [F]	Display Panel
5	330-2047	Upper Right 1" Disk Drive Guide
6	330-1948	Upper Left 1" Disk Drive Guide
7	540-3814	Lower Right 1" Disk Drive Guide
8	540-3813	Lower Left 1" Disk Drive Guide
9	340-3289	Interconnect Board Access Cover
10	540-2858 [F]	Front Fan Tray
11	340-3290	Empty Chassis
12 12	330-2064 330-2163	Front Bottom Cover Rear Bottom Cover
13	330-2000	Foot
14	330-2106	Vented Side Panel
15	540-2859 [F]	Rear Fan Tray
16	540-2954	Rear Panel Assembly
17	540-2857 [F]	Rear Door Assembly
18	370-2004 [F]	AC Input Filter
NS	240-2690	Key
NS	340-3627	Shipping Bracket
NS	340-3899	FC100 Hub Mounting Bracket
NS	340-5262	Right Mounting Rail (68 inch & 72 inch cabinet)
NS	340-5263	Left Mounting Rail (68 inch & 72 inch cabinet)
NS	340-5264	Right Tray (68 inch & 72 inch cabinet)
NS	340-5265	Left Tray (68 inch & 72 inch cabinet)
NS	370-3592	AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS	530-2236	Remote Keyswitch Control Cable, 3.2M (56 inch, 68 inch, & 72 inch cabinet)
NS	530-2264	AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS	530-2674	Power Cord, Harting Han 6HsB to NEMA L6-30P 4M
NS	530-2675	Power Cord, Harting Han 6HsB to IEC309
NS	540-3707	72 inch Sun StorEdge Expansion Cabinet Assembly
NS	540-3469	Empty 1" Disk Drive Slot Filler
NS	540-3964	Sun StorEdge A5200 Chassis without Skins
NS	540-4098	Sun StorEdge A5200 Chassis without Skins
