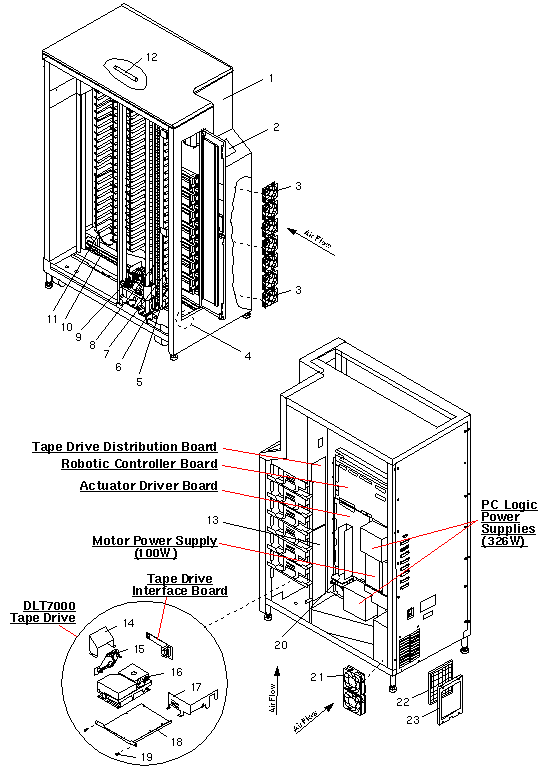

| CODE |
MANUFACTURING
PART #
|
DESCRIPTION
|
1
1 |
595-4444
595-4445 |
ETL 2/3500 / StorEdge L3500 2 Drive Assembly
ETL 7/3500 / StorEdge L3500 7 Drive Assembly |
| 2 |
370-3255 [F] |
Touch Panel Assembly (-02 or higher required) |
| 3 |
370-3297 [F] |
31.8 CFM Fan Assembly |
| 4 |
370-2859 [F] |
Door Switch Assembly |
| 5 |
370-2858 [F] |
X-Axis Confirmation Sensor |
| 6 |
370-2855 [F] |
Y-Axis Stepper Motor Assembly |
| 7 |
370-2854 [F] |
X-Axis Interconnect Board |
| 8 |
370-3305 [F] |
Y-Axis Drive Belt, 188" |
| 9 |
370-2863 [F] |
Extension Axis Assembly (-02 required) |
| 10 |
370-3304 [F] |
X-Axis Drive Belt, 240" |
| 11 |
370-2856 [F] |
X-Axis Stepper Motor Assembly |
| 12 |
370-2866 [F] |
Fluorescent Bulb |
| 13 |
370-3298 [F] |
Tape Drive Multiplexor Board |
| 14 |
None |
Tape Drive Fan Shield |
| 15 |
370-3261 |
Stepper Motor Assembly |
| 16 |
None |
DLT[tm] 7000 Tape Drive |
| 17 |
None |
Tape Drive Mounting Bracket |
| 18 |
None |
Tape Drive Shelf |
| 19 |
None |
#10-32 × 1/2" Screw with Washer |
| 20 |
370-3297 [F] |
Controller Electronics Assembly Fan |
| 21 |
370-3296 [F] |
108 CFM Fan Assembly |
| 22 |
None |
Air Filter, 7.5" × 6" |
| 23 |
None |
Air Filter Cover |
| NS |
370-2857 [F] |
Load Port Door Lockout Solenoid |
| NS |
370-2188 |
Data Cartridge |
| NS |
370-2189 |
Cleaning Cartridge |
