OpenVMS VAX Version 7.1 Upgrade and Installation Manual

Caution: The installation procedure initializes the system disk, overwriting its contents. For this reason, use the installation procedure only on new VAX computers or if you want to destroy the contents of the system disk.

1.5.2 How to Use the Installation Documentation

This manual contains step-by-step instructions for performing an OpenVMS VAX installation. However, you will need to refer to several different documents before and during the installation. Figure 1-1 illustrates the major steps in an installation and the documents you will use to perform each step.

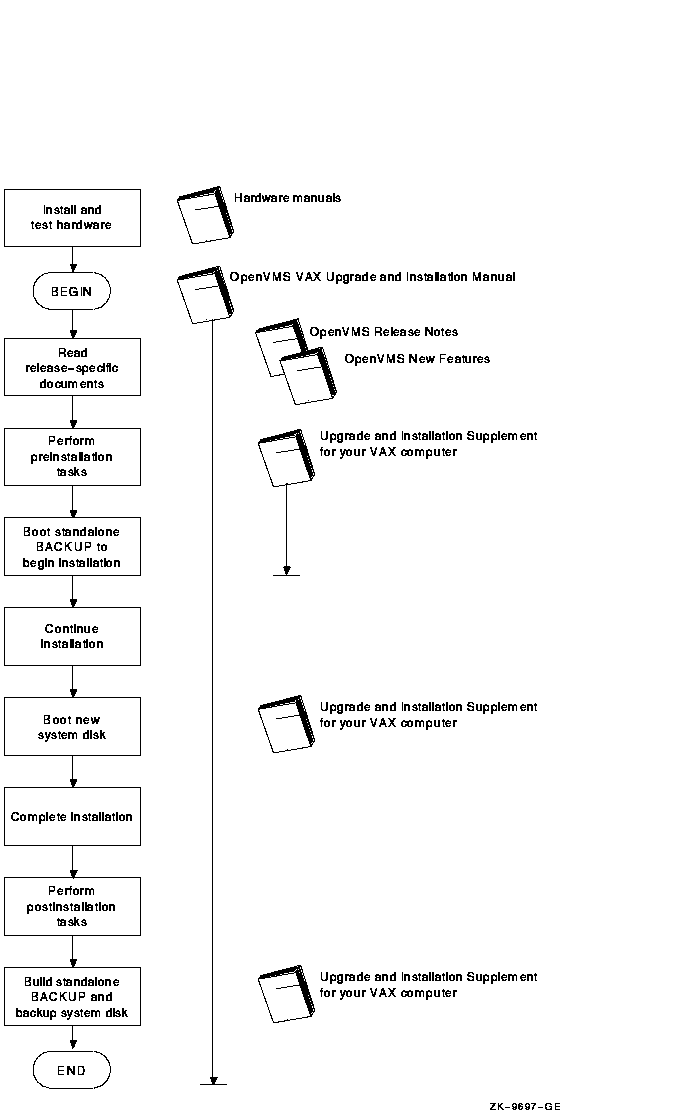

Figure 1-1 Documentation Used to Perform an Installation

1.6 What Happens During an Upgrade

When you upgrade the OpenVMS VAX operating system, the upgrade procedure does the following:

Deletes and purges some OpenVMS VAX files on the system disk but leaves all the user files intact.
Transfers the new OpenVMS VAX files from the distribution media to the system disk.
Note: The upgrade procedure puts the most recent versions of the OpenVMS VAX files in SYS$COMMON.
Merges some of the old OpenVMS files and the new OpenVMS VAX files and replaces others.
Certain OpenVMS VAX files are placed either over or under existing files (that is, they are given a version number above or below the version number of the existing file). This is done to protect any customizations to the files and results in having two versions of the file when the upgrade is completed. For more information, see Appendix F.
Cleans up files and structures used only during the upgrade.
Leaves your OpenVMS license and System Integrated Product (SIP) licenses intact.
You do not need to reinstall these licenses after you upgrade. (See Appendix B for detailed information about license management for OpenVMS VAX Version 7.1.)

1.6.1 When to Perform an Upgrade

In most cases, you can use the upgrade procedure to obtain a higher version of the OpenVMS VAX operating system. Unlike the installation procedure, the upgrade procedure does not initialize your system disk. This means you can get the latest version of the operating system and keep your user files and optional software files intact.

1.6.2 How to Use the Upgrade Documentation

This manual contains step-by-step instructions for performing an OpenVMS VAX upgrade. However, you will need to refer to several different documents before and during an upgrade. Figure 1-2 illustrates the major steps in an upgrade and the documents you will use to perform each step.

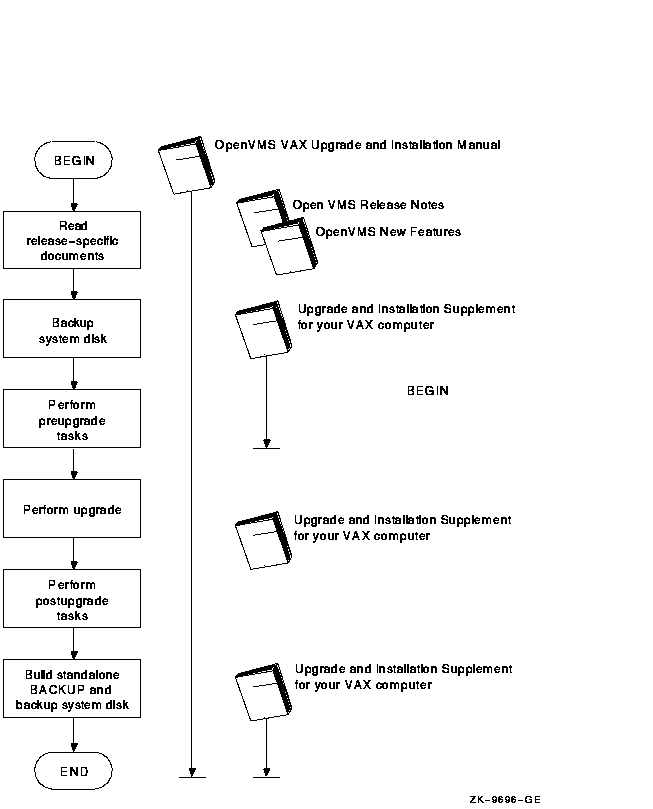

Figure 1-2 Documentation Used to Perform an Upgrade

1.7 Where to Go Next

If you are installing the OpenVMS VAX operating system, go to Chapter 2.

If you are upgrading the OpenVMS VAX operating system, go to Chapter 5.

Chapter 2
Before Installing OpenVMS VAX Software

2.1 Overview

This chapter describes how to prepare for installing the OpenVMS VAX operating system, including:

Being aware of the cautions and restrictions
Ensuring your hardware is ready
Ensuring your software distribution kit is complete
Preparing for a C2 system
Preparing for a VAXcluster environment
Preparing your tape and disk drives
Gathering the information you need to supply during the installation procedure
Completing the preinstallation checklist

If you are an experienced system manager, you can use the checklist at the end of the chapter to complete all the necessary preinstallation tasks.

If you are a less-experienced system manager, you should read the entire chapter and then use the checklist to make sure you completed all the preinstallation tasks.

2.2 Cautions and Restrictions

Before you begin the installation procedure, note the following cautions and restrictions.

2.2.1 Cautions

The following cautions apply for Version 7.1 of the OpenVMS VAX operating system:

The software installation procedure overwrites the contents of the system disk. Use the installation procedure only if your VAX computer is new or if you want to destroy the contents of the system disk. If your system disk contains files you want to save, you should upgrade to the new version of OpenVMS VAX. For an overview of the upgrade procedure, see Chapter 5.
Do not attempt to use VMSINSTAL with OPTION G to transfer OpenVMS VAX save sets to another media type; doing so will produce an unusable system. Instead, you can use the DCL command COPY to transfer save sets to another media type.
If you move the save sets from the distribution media before beginning the installation, you must move them to the [000000] directory on a disk that is not the system disk; otherwise, the installation will fail.

2.2.2 Restrictions

The following restrictions apply for Version 7.1 of the OpenVMS VAX operating system:

If your system contains DIGITAL Storage Systems Interconnect (DSSI) disks attached to a KFQSA controller, you will notice a change in the device names for DSSI disks attached to KFQSA controllers.
When you boot standalone BACKUP, it will display the devices on your system using the new device naming scheme. Use the new device names throughout the installation and after you complete the installation.
If you want to use DECwindows software with OpenVMS VAX Version 7.1, you must purchase and install the DECwindows Motif for OpenVMS Version 1.2--3, or higher, layered product. For more information, see Section 1.2.1.

2.3 Are You Ready to Install?

Before you begin to install the OpenVMS VAX operating system, make sure you have all the required hardware and software components.

2.3.1 Hardware Components

Examine your hardware for the following:

Make sure the hardware has been installed and checked for proper operation. For detailed information about the hardware, see the hardware manual for your VAX computer.
Make sure you know how to turn on and operate your system components, including the system unit, console, monitor, drives, terminals, and printers. If necessary, read the manuals that came with these components.
Set up your system to record the installation procedure on either a hardcopy terminal or a printer attached to the console terminal. If you do not do this, the screen messages will be lost. You will need a transcript in case there is a problem during the installation. For more information, see the upgrade and installation supplement for your computer.

2.3.2 Software Components

Examine your software for the following:

Make sure you have all the items listed on the bill of materials (BOM) in the OpenVMS VAX distribution kit. If your kit is incomplete, notify Digital Software Supply, and request priority shipment of any missing items.
Before installing the OpenVMS VAX operating system, review Appendix B of this manual for license management information, the OpenVMS Version 7.1 New Features Manual, the OpenVMS Version 7.1 Release Notes, and any cover letters included with your kit.
Read the Before Installing OpenVMS section in the upgrade and installation supplement for your VAX computer, which describes tasks specific to your VAX computer that you must complete before beginning the installation.

2.4 Preparing for an Installation

Now that you have determined that your hardware and software components are ready, you can make the necessary preparations for installing the OpenVMS VAX operating system.

2.4.1 Preparing for a C2 System

Many of the security features provided by the OpenVMS VAX operating system are directed toward the criteria for a C2 system, as defined in the Department of Defense Trusted Computer System Evaluation Criteria, published by the U.S. Department of Defense Computer Security Center (DOD 5200.28-STD).

A C2 system is the shipped system that has been configured according to the guidelines in Appendix C of the OpenVMS Guide to System Security. Before installing OpenVMS VAX, become familiar with the requirements for operating an OpenVMS VAX system within the C2 framework.

2.4.2 Preparing for a VAXcluster Environment

If you are installing the OpenVMS VAX operating system in a VAXcluster environment, the installation procedure will ask you for information about your VAXcluster environment. Before proceeding, review OpenVMS Cluster Systems, which provides the information you will need to answer questions during the installation.

Note: Entering incorrect information during the installation can force you to repeat the entire installation procedure.

Table 2-1 lists the VAXcluster information you need and explains how to obtain that information. For a complete explanation, see OpenVMS Cluster Systems.

Table 2-1 VAXcluster Information for Installations
Information You Need How to Get It

Type of configuration Configuration types are distinguished by the interconnect device that the VAX computers in the cluster use to communicate with one another: Computer Interconnect (CI), Ethernet, DIGITAL Storage Systems Interconnect (DSSI), or FDDI (Fiber Distributed Data Interface).

DECnet node name and node address Determined by the network or system manager for each VAX computer on the network. See your system or network manager for the DECnet node name and node address for the VAX computer on which you are installing the OpenVMS VAX operating system. See the DECnet/OSI for OpenVMS Installation and Configuration for more information.

Allocation class value During the installation procedure you will be asked for the ALLOCLASS value of the VAX computer on which you are installing the OpenVMS VAX operating system. For example:
Enter a value for MYNODE's ALLOCLASS parameter:

Refer to OpenVMS Cluster Systems for the rules on specifying allocation class values. Note that, in a mixed-interconnect VAXcluster environment, the allocation class value cannot be zero. It has to be a value between 1 and 255. This is also true for any VAX computer that is connected to a dual-pathed disk.
When you enter the allocation class value, the installation procedure uses it to automatically set the value of the system parameter ALLOCLASS.

Quorum disk See OpenVMS Cluster Systems to determine whether you want a quorum disk in the cluster.

Location for page and swap files See OpenVMS Cluster Systems to determine where the page and swap files will be located for the system from which you are installing the OpenVMS VAX operating system software.

MOP servers, disk servers, tape servers To establish either a local area or a mixed-interconnect cluster, determine which systems will be Maintenance Operations Protocol (MOP) servers, disk servers, and tape servers. Refer to OpenVMS Cluster Systems.

Cluster group number and cluster password To establish either a local area or a mixed-interconnect cluster.
Cluster group number : A number in the range from 1 to 4095 or from 61440 to 65535.
Cluster password : Can range from 1 to 31 alphanumeric characters, including dollar signs ($) and underscores (_).

**Table 2-1 VAXcluster Information for Installations**
Information You Need	How to Get It
Type of configuration	Configuration types are distinguished by the interconnect device that the VAX computers in the cluster use to communicate with one another: Computer Interconnect (CI), Ethernet, DIGITAL Storage Systems Interconnect (DSSI), or FDDI (Fiber Distributed Data Interface).
DECnet node name and node address	Determined by the network or system manager for each VAX computer on the network. See your system or network manager for the DECnet node name and node address for the VAX computer on which you are installing the OpenVMS VAX operating system. See the DECnet/OSI for OpenVMS Installation and Configuration for more information.
Allocation class value	During the installation procedure you will be asked for the ALLOCLASS value of the VAX computer on which you are installing the OpenVMS VAX operating system. For example: Enter a value for MYNODE's ALLOCLASS parameter: Refer to OpenVMS Cluster Systems for the rules on specifying allocation class values. Note that, in a mixed-interconnect VAXcluster environment, the allocation class value cannot be zero. It has to be a value between 1 and 255. This is also true for any VAX computer that is connected to a dual-pathed disk. When you enter the allocation class value, the installation procedure uses it to automatically set the value of the system parameter ALLOCLASS.
Quorum disk	See OpenVMS Cluster Systems to determine whether you want a quorum disk in the cluster.
Location for page and swap files	See OpenVMS Cluster Systems to determine where the page and swap files will be located for the system from which you are installing the OpenVMS VAX operating system software.
MOP servers, disk servers, tape servers	To establish either a local area or a mixed-interconnect cluster, determine which systems will be Maintenance Operations Protocol (MOP) servers, disk servers, and tape servers. Refer to OpenVMS Cluster Systems.
Cluster group number and cluster password	To establish either a local area or a mixed-interconnect cluster. Cluster group number : A number in the range from 1 to 4095 or from 61440 to 65535. Cluster password : Can range from 1 to 31 alphanumeric characters, including dollar signs ($) and underscores (_).

2.4.3 Preparing Tape and Disk Drives

Prepare your tape and disk drives using the following steps:

Decide which drive will hold the distribution tape and which drive will hold the system disk. Determine the device names for each drive, and write these names on a piece of paper. You will need this information throughout the installation. If you need information about devices and device names, refer to the Before Installing the OpenVMS Operating System section in the upgrade and installation supplement for your VAX computer.
Note: Do not place the distribution media in the drive at this point.
Follow this step only if the source drive or target drive is attached to a hierarchical storage controller (HSC). Otherwise, go to step 3.
Make sure that both the CI and HSC devices are turned on and on line. Obtain the HSC name from the system manager, or use the following procedure:
1. Press Ctrl/C at the HSC console terminal.
2. Enter the following command at the HSC> prompt and press Return:
```
HSC> SHOW SYSTEM
```
  The information displayed includes the name of the HSC. For example:
```
22-NOV-1996 15:00:00.00 Boot:12-NOV-1996 11:31:11.41  Up: 51:00
Version V350           System ID: %X000000011        Name: MUTT
      .
      .
      .
DISK allocation class = 1 TAPE allocation class = 0
Start command file Disabled

SETSHO - Program Exit
```
  For more information, see the HSC User's Guide.
Place a scratch disk in the drive for the system disk (unless the system disk is fixed).
Spin up the disk that will be the system disk but do not write protect it.

2.4.4 Information You Need During the Installation

During the installation, the procedure prompts you to supply certain information. To save time once the procedure begins, be sure you have the following information available. Remember, entering incorrect information during the installation could force you to repeat the entire installation procedure.

Required Information Explanation

Passwords You will be prompted to type passwords of at least 8 characters for the SYSTEM, SYSTEST, and FIELD accounts.

SCSNODE and SCSSYSTEMID parameters If you are installing a standalone system, you will be prompted to supply an SCSNODE name and an SCSSYSTEMID. The SCSNODE name must be a 1- to 6-character unique DECnet node name. The SCSSYSTEMID system parameter is calculated as follows:
(DECnet area * 1024) + node number

Note that, if you are installing the operating system in a VAXcluster environment, the installation procedure does not prompt you to supply these parameters. It calculates the SCSNODE and SCSSYSTEMID based on the DECnet node name and node address that you supply earlier in the procedure.

Optional components and OpenVMS Management Station files The installation procedure prompts you to specify whether you want to install the library (VMS071.C), optional (VMS071.D) OpenVMS components, and OpenVMS Management Station software PC files (VMS071.F). Appendix D lists the files included in these save sets.
You can save some space on your system disk if you choose not to install these components, but be sure to review Appendix D before deciding.

Location for Help Message utility Save set VMS071.E contains the online Help Message utility, which you can install on your system disk or on an alternate disk. (However, if you copied the distribution kit to some other media from which you will be performing the installation, you cannot install this save set on that media.)

DECwindows components The installation procedure prompts you to specify which of the following DECwindows components you want to install:

DECwindows base support (required for running DECwindows software), which includes:

DECwindows transport
DECwindows keymaps

DECwindows workstation support (required for VAX workstations), which includes:

DECwindows X11 display server
Graphics drivers
75 dots/inch video fonts
100 dots/inch video fonts (option available only if you select DECwindows workstation support)

You must install the DECwindows Motif for OpenVMS (previously called VMS DECwindows Motif) layered product if you want to run the DECwindows software. DECwindows Motif for OpenVMS Version 1.2--3 (or 1.2 if the VAXMOTF05_012 remedial kit is installed) is the minimum supported version for systems running OpenVMS VAX Version 7.1. If you do not know which version of DECwindows Motif you are currently running on your system, you can check by entering the following command:
$ ANALYZE/IMAGE SYS$LIBRARY:DECW$XLIBSHR.EXE

Note: The DECwindows Motif for OpenVMS layered product does not have the DECwindows base and workstation support components. To get full DECwindows support, you must select the DECwindows components provided with the OpenVMS VAX kit and install the separate DECwindows Motif for OpenVMS layered product, which supports both Motif and XUI environments.

PAK information The information listed on Product Authorization Keys (PAKs) for your OpenVMS VAX license and any system-integrated products you will run. The installation procedure gives you the opportunity to register any licenses you have. To register your licenses, you will need to enter the information listed on the PAK for each license.

Required Information	Explanation
Passwords	You will be prompted to type passwords of at least 8 characters for the SYSTEM, SYSTEST, and FIELD accounts.
SCSNODE and SCSSYSTEMID parameters	If you are installing a standalone system, you will be prompted to supply an SCSNODE name and an SCSSYSTEMID. The SCSNODE name must be a 1- to 6-character unique DECnet node name. The SCSSYSTEMID system parameter is calculated as follows: (DECnet area * 1024) + node number Note that, if you are installing the operating system in a VAXcluster environment, the installation procedure does not prompt you to supply these parameters. It calculates the SCSNODE and SCSSYSTEMID based on the DECnet node name and node address that you supply earlier in the procedure.
Optional components and OpenVMS Management Station files	The installation procedure prompts you to specify whether you want to install the library (VMS071.C), optional (VMS071.D) OpenVMS components, and OpenVMS Management Station software PC files (VMS071.F). Appendix D lists the files included in these save sets. You can save some space on your system disk if you choose not to install these components, but be sure to review Appendix D before deciding.
Location for Help Message utility	Save set VMS071.E contains the online Help Message utility, which you can install on your system disk or on an alternate disk. (However, if you copied the distribution kit to some other media from which you will be performing the installation, you cannot install this save set on that media.)
DECwindows components	The installation procedure prompts you to specify which of the following DECwindows components you want to install: DECwindows base support (required for running DECwindows software), which includes: DECwindows transport DECwindows keymaps DECwindows workstation support (required for VAX workstations), which includes: DECwindows X11 display server Graphics drivers 75 dots/inch video fonts 100 dots/inch video fonts (option available only if you select DECwindows workstation support) You must install the DECwindows Motif for OpenVMS (previously called VMS DECwindows Motif) layered product if you want to run the DECwindows software. DECwindows Motif for OpenVMS Version 1.2--3 (or 1.2 if the VAXMOTF05_012 remedial kit is installed) is the minimum supported version for systems running OpenVMS VAX Version 7.1. If you do not know which version of DECwindows Motif you are currently running on your system, you can check by entering the following command: $ ANALYZE/IMAGE SYS$LIBRARY:DECW$XLIBSHR.EXE Note: The DECwindows Motif for OpenVMS layered product does not have the DECwindows base and workstation support components. To get full DECwindows support, you must select the DECwindows components provided with the OpenVMS VAX kit and install the separate DECwindows Motif for OpenVMS layered product, which supports both Motif and XUI environments.
PAK information	The information listed on Product Authorization Keys (PAKs) for your OpenVMS VAX license and any system-integrated products you will run. The installation procedure gives you the opportunity to register any licenses you have. To register your licenses, you will need to enter the information listed on the PAK for each license.

2.5 Preinstallation Checklist

Before you begin the installation, use the following checklist to make sure you have completed all of the tasks described in this chapter:

Read the cautions and restrictions described at the beginning of this chapter.
Make sure the hardware is installed and tested. (Described in the hardware manuals for your VAX computer.)
Check the contents of your kit against the bill of materials (BOM).
Read Appendix B of this manual, the OpenVMS Version 7.1 New Features Manual, the OpenVMS Version 7.1 Release Notes, and any cover letters included with your kit.
Read Section 2.4.1 for special considerations about running the OpenVMS VAX operating system in a C2 environment if you intend to create a C2 compliant environment.
Turn on the system. (Described in the upgrade and installation supplement for your VAX computer.)
Set up your system to record the installation procedure. (Described in the upgrade and installation supplement for your VAX computer.)
Read the Before Installing OpenVMS section in the upgrade and installation supplement for your VAX computer and perform the tasks described there.
Make sure you have the most recent version of the console media if you have a VAX computer that uses console media. (Described in the upgrade and installation supplement for your VAX computer.)
Determine whether you want a CI only, local area, or mixed-interconnect cluster if you are installing the OpenVMS VAX operating system on a VAX computer in a VAXcluster environment. (Described in OpenVMS Cluster Systems.)
You should have the following information, depending on the type of VAXcluster:
- CI Only VAXcluster: Get the allocation class value, DECnet node name, and DECnet node address for the computer. You also need to decide if you want a quorum disk and where the page and swap files for the system from which you are installing will be located.
- Local Area and Mixed-Interconnect VAXclusters: Get the allocation class value, the DECnet node name, the DECnet node address, the cluster group number, and the cluster password. You also need to decide if you want a quorum disk and where the page and swap files for the system from which you are installing will be located.
Prepare the disk and tape drives. (Described in Section 2.4.3.)
Make sure you have the following information (described in Section 2.4.4) available:
- Passwords containing at least 8 characters for the SYSTEM, SYSTEST, and FIELD accounts.
- SCSNODE and SCSSYSTEMID if you are installing a standalone system.
- A list of optional OpenVMS VAX components you want to install.
- A list of optional DECwindows support components you want to install.
- Information listed on Product Authorization Keys (PAKs) for your OpenVMS VAX license and any system-integrated products you will run.

After you have performed all the tasks in the checklist, go to Chapter 3 to begin the installation.

Chapter 3
Installing the OpenVMS VAX Operating System

3.1 Overview

During the installation procedure, OpenVMS VAX files are transferred from the distribution media to the system disk or, for certain files, to an alternate disk. The time required to complete an installation varies depending on your hardware configuration and on the distribution media you are using. In most cases, magnetic tapes and tape cartridges require more time than compact discs.

The following installation tasks are described in this chapter:

Booting standalone BACKUP
Creating the system disk
Configuring a cluster
Setting passwords
Creating the rights database
Registering licenses
Running AUTOGEN

At certain points in the procedure you will need to refer to the upgrade and installation supplement for installation instructions that are specific to your VAX computer.

3.2 Booting Standalone BACKUP

Standalone BACKUP is a subset of the OpenVMS Backup utility (BACKUP). Because you boot it into main memory, standalone BACKUP executes outside the control of the operating system. You use standalone BACKUP to restore the required save sets from the distribution media to your system disk.

Standalone BACKUP is included in the OpenVMS VAX distribution kit. Each piece of media in the distribution kit has a label that indicates its contents. For example, there are two tape cartridges in a TK50 kit. Standalone BACKUP is on the second tape cartridge.

3.2.1 Booting from Tape Cartridge

If your distribution media is tape cartridges, complete the following steps to boot standalone BACKUP. (If you are using an InfoServer device, go to Section 3.2.2.)

Place the media that contains standalone BACKUP in the source drive or in the console drive.
Follow the instructions in the Booting Standalone BACKUP section of the upgrade and installation supplement for your VAX computer.

After you boot standalone BACKUP, the system displays the following:

%BACKUP-I-IDENT, standalone BACKUP V6.2; the date is 22-NOV-1996 15:00
$

Note: If you have a tape cartridge kit, remove the tape cartridge 2/2 from the drive after you boot standalone BACKUP. Put the tape cartridge that contains the OpenVMS VAX operating system in the drive. The tape cartridge is labeled VMS071 BIN TK50 1/2 VMS BINARY.

After you have booted standalone BACKUP, go to Section 3.3.

3.2.2 Booting from an InfoServer Device

If you are using the InfoServer to boot standalone BACKUP from a compact disc, complete the following steps:

Insert the distribution compact disc into the drive.
Follow the instructions in the Booting Standalone BACKUP section of the upgrade and installation supplement for your VAX computer.
Enter your VAX processor boot command by using the designator for the Ethernet adapter in the boot path and, except for the VAX 9000 computer, add the /R5:100 qualifier to the boot command.
For example, on a VAX 6000 computer:
```
>>> B/R5:100/X:D/B:6 ET0
```
On VAX 9000 computers, standalone BACKUP resides on the console hard disk. Because the boot process is slightly different for each type of controller, each supported controller has a unique boot command procedure. Refer to the upgrade and installation supplement for your VAX 9000 computer for instructions for booting standalone BACKUP on your system.

During an InfoServer boot, the procedure prompts you for a file name that contains an initial system load (ISL) boot program instead of a virtual memory boot (VMB) program. Select one of the two files as follows:

ISL_SVAX_071
ISL_LVAX_071

Use the following table to determine which file name and boot path designator to use for your processor. Note that the VAX 9000 computer has the ISL file data built in its VMB image that runs from the console.

Processor Series	ISL File	Boot Path Designator
VAX 3000	ISL_SVAX_071	ESA0 (LANCE), XQA0 (DELQA)
VAX 4000	ISL_SVAX_071	EZA0 (SGEC), XQA0 (DELQA)
VAX 6000	ISL_LVAX_071	EXA0 (DEMNA), FXA0 (DEMFA), ETA0 (DEBNI) (DEBNA)
VAX 7000	ISL_LVAX_071	EXA0 (DEMNA), FXA0 (DEMFA)
VAX 10000	ISL_LVAX_071	EXA0 (DEMNA), FXA0 (DEMFA)
MicroVAX	ISL_SVAX_071	ESA0 (LANCE), XQA0 (DELQA)
VAXstation	ISL_SVAX_071	ESA0 (LANCE)
VAXft 110, 310, 410, 610, and 612	ISL_SVAX_071	EPA0 (LANCE)

On a VAX 6000 computer, you would respond to the prompt as shown in the following example:

Loading system software.

Filename: ISL_LVAX_071

The InfoServer ISL program then displays the following menu:


  Network Initial System Load Function
  Version 1.1


    FUNCTION         FUNCTION
      ID
      1     -        Display Menu
      2     -        Help
      3     -        Choose Service
      4     -        Select Options
      5     -        Stop

 Enter a function ID value:

If you need more information, select function ID 2 for help.

After you boot standalone BACKUP, the system displays the following:
```
%BACKUP-I-IDENT, standalone BACKUP V6.2; the date is 22-NOV-1996 15:00
$
```
Previous | Next | Contents | [Home] | [Comments] | [Ordering info] | [Help]
```
  6487P001.HTM
  OSSG Documentation
   9-DEC-1996 10:53:42.61
```
Copyright © Digital Equipment Corporation 1996. All Rights Reserved.

Legal
