Sun[tm] LX50 - Full Components List
| CPU Module |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X5029A |
n/a |
n/a |
1.4GHz Processor |
n/a |
| n/a |
n/a |
540-5438 [F] |
1.4GHz Processor |
n/a |
| Disks |
| Option # |
Top Level
Part # |
Assembly FRU |
Manufacturing
Part # |
Description |
Substitute
Part # |
| x5020A |
595-6537 |
n/a |
n/a |
36GB SCSI Hard Drive Assembly |
n/a |
| X5021A |
595-6538 |
n/a |
n/a |
72GB 10000RPM SCSI HARD DRIVE |
n/a |
| n/a |
n/a |
540-5419 [C] |
n/a |
36GB SCSI HDD |
n/a |
| n/a |
n/a |
540-5420 [C] |
n/a |
72GB SCSI HDD |
n/a |
| Memory
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X5023A |
595-6527 |
n/a |
2 x 256MB SDRAM Memory |
n/a |
| X5024A |
595-6528 |
n/a |
2 x 512MB SDRAM Memory |
n/a |
| X5025A |
595-6529 |
n/a |
2 x 1GB SDRAM Memory |
n/a |
| n/a |
n/a |
540-5423 [C] |
ASSY,SINGLE 256MB DIMM |
n/a |
| n/a |
n/a |
540-5425 [C] |
ASSY,SINGLE 512MB DIMM |
n/a |
| n/a |
n/a |
540-5427 [C] |
ASSY,SINGLE 1GB DIMM |
n/a |
| Miscellaneous |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-5430 [C] |
Fan Module (5 unitized fans) |
n/a |
| n/a |
n/a |
n/a |
PS/2 style keyboard/mouse |
n/a |
| Power |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-5429 [C] |
Power Supply, 250W |
n/a |
| Rack Mount Kit |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X5027A |
595-6532 |
n/a |
Slide Rail Kit |
n/a |
| n/a |
n/a |
540-5433 [C] |
Bracket Set |
n/a |
| Removable Media |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-5432 [C] |
Floppy Drive/CD-ROM Combo Unit |
n/a |
| System Board |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-5436 [F] |
System Board, no CPU, no memory |
n/a |
| Sun LX50 Server
(CRU) |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
540-5440 [C] |
Sun LX50 Server CRU with system board, without major CRUs (no CPUs,
memory, disks, or floppy/CD-ROM combo unit) |
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered
with this system
[N] = No longer supported for this system |

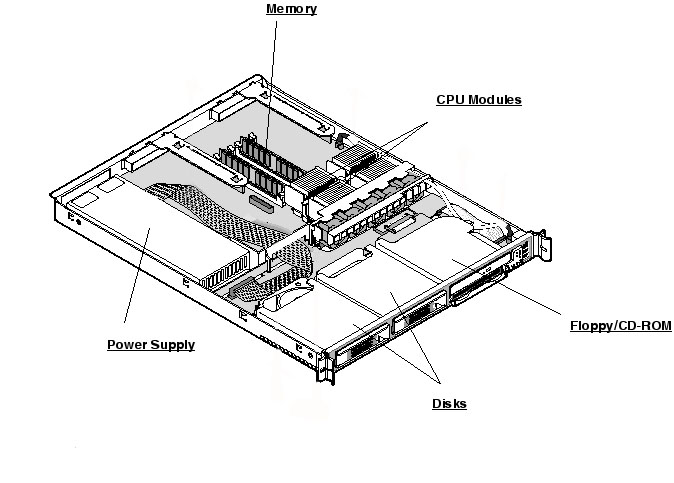

Exploded View
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
|
| CODE |
MANUFACTURING
PART # |
DESCRIPTION |
| NS |
540-5431 [C] |
Front Bezel |
| NS |
540-5439 [C]
|
Cable Kit (cables inside server chassis) |
| NS |
595-6531 |
RS232 - RJ45 Serial Dongle Kit (3 RJ-45 to DB9 cable adapters
for the front and rear management ports), Option X5026A |
| NS |
n/a |
Lithium Battery (CR2032) |
| n/a |
n/a |
Continental Europe Power Cord Kit, Option X312L |
| Swiss Power Cord Kit, Option X314L |
| UK Power Cord Kit, Option X317L |
|
